MFR #:FA430-16
EIS #:FA430-16-HAK
MFR #:FA430-16
EIS #:FA430-16-HAK
Out of Stock
Min Qty:1
|Qty Increment:1

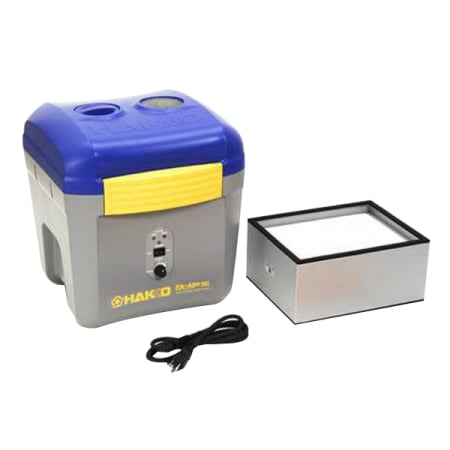

The Hakko FA430-16 is a volume fume extractor unit with pre-HEPA and maximum 2 ports/2 stations, no arms, 120W. Inside the unit, two filters, comprising three stages of filtering, remove the contaminants from the air. The purified air is then returned to the area where the Hakko FA430-016 Volume Fume Extraction Unit is located. - The pre-filter removes coarse particles, such as dust, thus extending the life of the main filter. The main filter provides the greatest amount of surface area within the volume of the filter case. The standard filters contain an activated carbon element built into the filter. This filter is designed to last the life of the main filter.
$1,184.16 / Piece
Min Qty:1
|Qty Increment:1
The Hakko FA430-16 is a volume fume extractor unit with pre-HEPA and maximum 2 ports/2 stations, no arms, 120W. Inside the unit, two filters, comprising three stages of filtering, remove the contaminants from the air. The purified air is then returned to the area where the Hakko FA430-016 Volume Fume Extraction Unit is located. - The pre-filter removes coarse particles, such as dust, thus extending the life of the main filter. The main filter provides the greatest amount of surface area within the volume of the filter case. The standard filters contain an activated carbon element built into the filter. This filter is designed to last the life of the main filter.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameVolume Fume Extraction System
Design & Construction
Gas Filter SpecificationActive Carbon Foam
Performance Details
Maximum Extraction Capacity246 cu-M/hr
Noise Level44 dB
Vacuum Pressure1500 Pa
Electrical Properties
Power Consumption120 w
Voltage Rating120 VAC
Physical Properties
Dimensions13 Inch L x 13.5 Inch W x 14.4 Inch H
Duct Size55 mm
Weight7.5 kg
Supporting Information
HEPA Filter Specification99.97% at 0.3 Micron
IncludesPower Cord, Main Filter and One Pre-filter
Features
- Filter replacement notification function ensures excellent trapping efficiency can be maintained at all times
- Quiet operation and powerful suction
- Catch harmful smoke with freestanding ducts and adjustable air volume to suit your working environment
- Airflow adjustment
- Freestanding ducts
- With Pre-HEPA, Maximum 2 Ports/2 Stations and without duct and hood
- Filter type of pre-filter, main filter
- Duct size of 55 mm dia x 1.2M L
- Maximum extraction capacity of 246 cu-m/hr (Single Duct), 284 cu-m/hr (Two Duct)
- Noise level of 44 - 53 at 1 mdB
- Number of Inlets: 1 or 2
Applications
- For Soldering in Laboratory or Office Environment
