Kester 977 No-Clean Soldering Flux

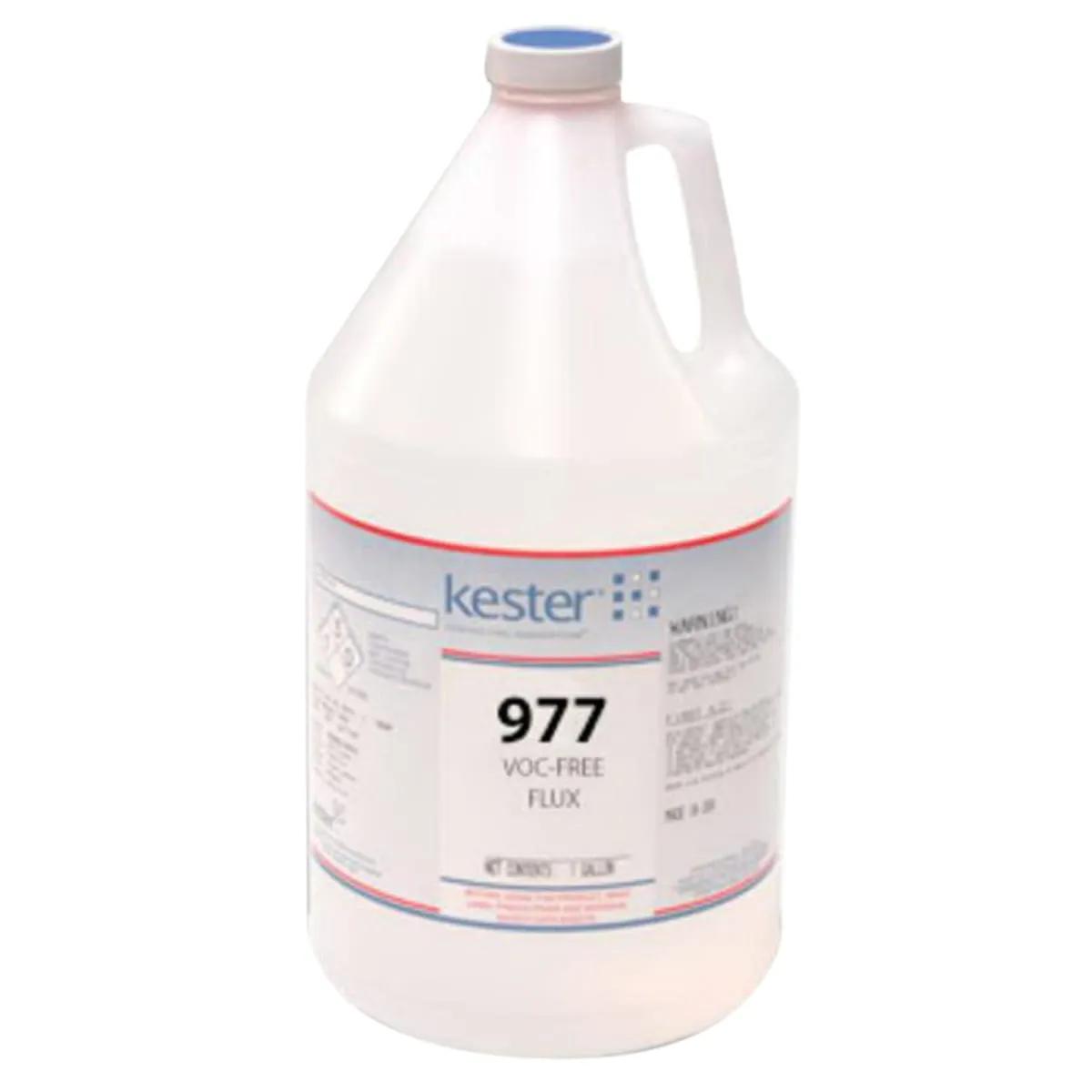

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:977

EIS #:PH19-977

Series #:977

MFR #:977

EIS #:PH19-977

Series #:977

0
0
The Kester 977 is an organic water soluble, water-based, no-clean chemistry for high quality soldering of electronic circuit board assemblies. Designed for wave soldering applications, 977 provides good wetting on most surface finishes. The flux was specifically designed to reduce bridging, which is commonly associated with VOC-free, no-clean fluxes. 977 has excellent soldering properties for improved productivity without sacrificing reliability of the assembly. - The flux leaves bright shiny solder joints and will not attack properly cured solder masks or FR-4 Epoxy-Glass laminate. The minimal amount of residue remaining after soldering is non-conductive, non-corrosive and does not need to be removed. The residues left after soldering will not interfere with in-circuit testing. 977 is not detrimental to the Surface Insulation Resistance (SIR) of the soldered assembly.
$35.89
 - $40.35
Select from the options below
0
0
The Kester 977 is an organic water soluble, water-based, no-clean chemistry for high quality soldering of electronic circuit board assemblies. Designed for wave soldering applications, 977 provides good wetting on most surface finishes. The flux was specifically designed to reduce bridging, which is commonly associated with VOC-free, no-clean fluxes. 977 has excellent soldering properties for improved productivity without sacrificing reliability of the assembly. - The flux leaves bright shiny solder joints and will not attack properly cured solder masks or FR-4 Epoxy-Glass laminate. The minimal amount of residue remaining after soldering is non-conductive, non-corrosive and does not need to be removed. The residues left after soldering will not interfere with in-circuit testing. 977 is not detrimental to the Surface Insulation Resistance (SIR) of the soldered assembly.

Product Options

Showing 3 out of 3 options
The image shown is representative of the product family and may not specifically be the individual item.
Container Size
1 gal
EIS Part #
KES977G
$ / US gallon
The image shown is representative of the product family and may not specifically be the individual item.
Container Size
5 gal
EIS Part #
KES9775G
$ / US gallon
Container Size
53 gal
EIS Part #
KES97753G
$ / US gallon

Attributes

General Information
Item NameSoldering Flux
Series977
General Features
Shelf Life36 Months
Storage Temperature4 to 25 °C
Design & Construction
ColorClear
Flux TypeNo-Clean
FormLiquid
Performance Details
Vapor Pressure23 hPa
Chemical Properties
Chemical CompositionOrganic Acid, Proprietary Glycol Mixture, Water
Flux Formula977
Specific Gravity1.012
Physical Properties
Odor/ScentMild
Supporting Information
Flux DesignatorORL0
RoHS Info2015/863 Directive
