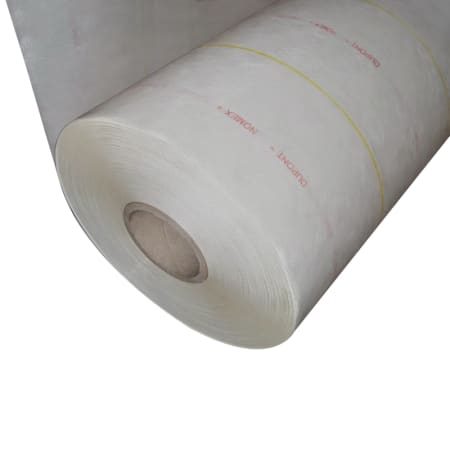

DuPont NMN Triplex Flexible Laminate Sheet, 7 Mil x 24" x 36"
MFR #:Nomex® Mylar® Nomex®-SHT
EIS #:NMN22201
Series #:Nomex® Mylar® Nomex®-SHT
MFR #:Nomex® Mylar® Nomex®-SHT
EIS #:NMN22201
Series #:Nomex® Mylar® Nomex®-SHT
Out of Stock
Min Qty:1
|Qty Increment:1
NMN laminates are 3-ply laminates constructed of calendered Nomex paper bonded to polyester film with a proprietary high-temperature adhesive system. These laminates will not delaminate or blister at high temperatures. NMN laminates are 3-ply laminates constructed of calendered Nomex paper bonded to polyester film with a proprietary high-temperature adhesive system. These laminates will not delaminate or blister at high temperatures.
$22.16 / Sheet
Min Qty:1
|Qty Increment:1
NMN laminates are 3-ply laminates constructed of calendered Nomex paper bonded to polyester film with a proprietary high-temperature adhesive system. These laminates will not delaminate or blister at high temperatures. NMN laminates are 3-ply laminates constructed of calendered Nomex paper bonded to polyester film with a proprietary high-temperature adhesive system. These laminates will not delaminate or blister at high temperatures.
Product Options
Showing 4 out of 4 options
 | Width: 24 Inch | Thickness: 14 mil | EIS Part #: NMN3753MR01 | $ / Sheet | |
| Width: 24 Inch | Thickness: 10 mil | EIS Part #: NMN25201 | $ / Sheet | |
| Width: 36 Inch | Thickness: 7 mil | EIS Part #: NMN22202 | $ / Square YD | |
| Width: 24 Inch | Thickness: 7 mil | EIS Part #: NMN22201 | $ / Sheet |
- Attributes
- Applications
- Features
Attributes
General Information
Item NameFlexible Laminate
Trade NameDupont
SeriesNomex® Mylar® Nomex®-SHT
General Features
TypeTriplex
Design & Construction
Insulation TypeClass H
Performance Details
Tensile Strength95 lb/Inch
Electrical Properties
Dielectric Strength11000 V
Physical Properties
Length36 Inch
Thickness7 Mil
Width24 Inch
Environmental Condition
Temperature Rating180 °C
Applications
- Slot Liners, Wedges and Phase Insulation in Class H Motors and Generators as Well as in Large and Specialty Class F Motors
- Cost-Critical Designs
- Generators
- Transformers
- Ground and Wrapper Insulation in Dry-type Transformers
Features
- Cost-effective
- Motor manufacture and repair facilities like the ability to standardize on NMN and use one insulation material for all motors
- High dielectric strength
- Good initial tear strength and tensile properties
- Long-term thermal stability
- Tensile Strength: 95 lb/Inch (MD), 70 lb/Inch (CD)
- Volume Resistivity: 10^15 Ohm-cm
