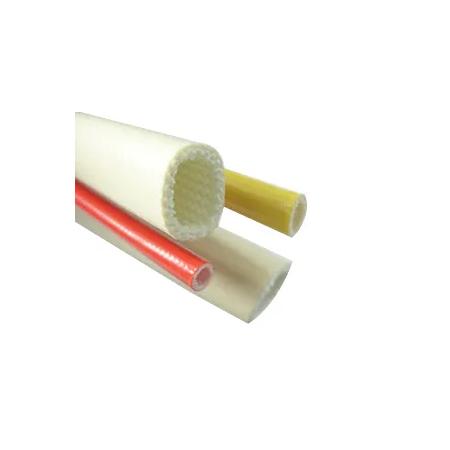

Delfingen Nu-Sleeve AG-155-S Class F Grade A+ Acrylic Coated Sleeving, 5/8", 100' Per Spool, Natural
MFR #:122369
EIS #:ACRAPLUS.625NBJ
Series #:Nu-Sleeve™ AG-155-S-A+
MFR #:122369
EIS #:ACRAPLUS.625NBJ
Series #:Nu-Sleeve™ AG-155-S-A+
In Stock
Min Qty:1
|Qty Increment:1
Nu-Sleeve AG-155 has the same characteristics than the standard Nu-Sleeve AG-155 but with superior electrical and puncture resistance properties (up to 12000V). Nu-Sleeve AG-155 provides electrical protection and has excellent chemical resistance. Nu-Sleeve AG-155 S is a fiberglass sleeve coated with a blend of acrylic polymers. It exhibits excellent heat stability and flexibility for ease of push-up and recovery.
$263.93 / 100Foot
Min Qty:1
|Qty Increment:1
Nu-Sleeve AG-155 has the same characteristics than the standard Nu-Sleeve AG-155 but with superior electrical and puncture resistance properties (up to 12000V). Nu-Sleeve AG-155 provides electrical protection and has excellent chemical resistance. Nu-Sleeve AG-155 S is a fiberglass sleeve coated with a blend of acrylic polymers. It exhibits excellent heat stability and flexibility for ease of push-up and recovery.
Product Options
Showing 8 out of 13 options
 | Length: 250 ft | Gauge: 8 AWG | Color: Natural | EIS Part #: ACRAPLUS08NFJ | $ / Foot | |
| Length: 250 ft | Gauge: 6 AWG | Color: Natural | EIS Part #: ACRAPLUS06NFJ | $ / Foot | |
| Length: 250 ft | Gauge: 5 AWG | Color: Natural | EIS Part #: ACRAPLUS05NFJ | $ / Foot | |
| Length: 250 ft | Gauge: 4 AWG | Color: Natural | EIS Part #: ACRAPLUS04NFJ | $ / Foot | |
| Length: 250 ft | Gauge: 3 AWG | Color: Natural | EIS Part #: ACRAPLUS03NFJ | $ / Foot | |
| Length: 250 ft | Gauge: 2 AWG | Color: Natural | EIS Part #: ACRAPLUS02NFJ | $ / Foot | |
| Length: 100 ft | Gauge: 1 AWG | Color: Natural | EIS Part #: ACRAPLUS01NBJ | $ / Foot | |
| Length: 100 ft | Gauge: 0 AWG | Color: Natural | EIS Part #: ACRAPLUS00NBJ | $ / Foot |
- Attributes
- Applications
- Features
Attributes
General Information
Item NameAcrylic Coated Sleeving
Trade NameNu-Sleeve™ AG-155-S
SeriesNu-Sleeve™ AG-155-S-A+
Design & Construction
Braid TypeFiberglass
ColorNatural
GradeA+
Insulation Coating TypeAcrylic
Insulation MaterialAcrylic
Insulation TypeClass F
MaterialAcrylic Coated Fiberglass
NEMA SpecificationNEMA TF 1 Type 6
Performance Details
Flame RetardantYes
Electrical Properties
Breakdown Voltage15 kV
Dielectric GradeGrade A+
Dielectric Strength12000 V
Physical Properties
Elongation150%
Gauge0.625 Inch
Inside Diameter0.64 Inch
Length100 ft
Wall ThicknessNEMA TF-1
Environmental Condition
Temperature Rating-40 to 155 °C
Applications
- For Coil and Winding Industry (Coils, Motors, Generators, Transformers)
- Lighting Fixtures, Transportation (Mass Transit, Rail Cars, Locomotives)
- Industrial Equipment (Tow Motors, Overhead Cranes, Aerial Platforms)
- Technology, Media and Telecommunication
Features
- Nu-Sleeve AG-155 provides electrical protection and has excellent chemical resistance
- It exhibits excellent heat stability and flexibility for ease of push-up and recovery
- Excellent cut through resistance
- 2.8 (1000 Hz) dielectric constant
- 0.08 (1000 Hz) dissipation factor
- Flexibility (NEMA TF-1 ) does not crack when bent 180 deg around mandrel after heat age at 175 °C (347 °F) for 96 hours
- Fungus resistance very good - none at 10x
- Abrasion resistance (SAE ARP 1 536) 2500 cycles
- Dielectric Strength: Dry - 12000 V, Wet - >80% Of Dry Value
- Volume Resistivity: 1.1 Ohm-cm x 10^10 Ohm-cm
- Dielectric Grade: A+
- Temperature Rating: -40 to 155 °C
- Length: 100 ft Per Spool
