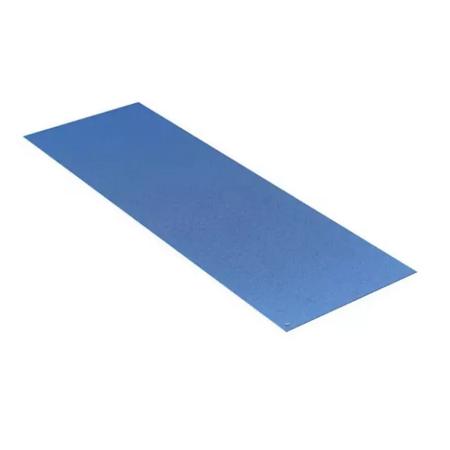

ACL Staticide Dualmat 8285 Static Dissipative Table Mat

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:8285

EIS #:PH13-8285

Series #:8285

MFR #:8285

EIS #:PH13-8285

Series #:8285

0
0
Dualmat is a chemically cross-linked material with different electrical resistances on each side. Because it is inherently cross-linked the material will not delaminate and is volume conductive. The layers are permanently dissipative with polymers that will not lose electrical properties, will not exudate and more importantly will not outgas and contaminate clean room environments. The material is as durable as rigid laminates, and as comfortable and appealing as softer rubber or vinyl mats. It is suitable for use with constant monitor systems. - This ESD mat is a static dissipative industrial-grade elastomer designed for use on tables and other grounded work bench surfaces. Unlike the competition's surface dissipative mats, the electrical properties of the Dualmat are volume dissipative. This material was developed to conform to the most stringent ESD and lead-free requirements.
$153.30
 - $1,840.44
Select from the options below
0
0
Dualmat is a chemically cross-linked material with different electrical resistances on each side. Because it is inherently cross-linked the material will not delaminate and is volume conductive. The layers are permanently dissipative with polymers that will not lose electrical properties, will not exudate and more importantly will not outgas and contaminate clean room environments. The material is as durable as rigid laminates, and as comfortable and appealing as softer rubber or vinyl mats. It is suitable for use with constant monitor systems. - This ESD mat is a static dissipative industrial-grade elastomer designed for use on tables and other grounded work bench surfaces. Unlike the competition's surface dissipative mats, the electrical properties of the Dualmat are volume dissipative. This material was developed to conform to the most stringent ESD and lead-free requirements.

Product Options

Showing 8 out of 8 options
The image shown is representative of the product family and may not specifically be the individual item.
Length
40 ft
Width
36 Inch
EIS Part #
ACL8285RBR3640
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Length
40 ft
Width
30 Inch
EIS Part #
ACL8285RBR3040
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Length
40 ft
Width
24 Inch
EIS Part #
ACL8285RBR2440
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Length
96 Inch
Width
36 Inch
EIS Part #
ACL8285RBM3696
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Length
72 Inch
Width
32 Inch
EIS Part #
ACL8285RBM3272
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Length
96 Inch
Width
30 Inch
EIS Part #
ACL8285RBM3096
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Length
72 Inch
Width
30 Inch
EIS Part #
ACL8285RBM3072
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Length
60 Inch
Width
30 Inch
EIS Part #
ACL8285RBM3060
$ / Piece

Attributes

General Information
Item NameTable Mat
Trade NameDualmat™
Series8285
General Features
StandardsANSI/ESD S20.20, STM 7.1, ASTM F-150, NFPA-99, UL-779, EN 100015, DIN 51953 and IEC-61340-5-1
TypeStatic Dissipative
Design & Construction
ColorRoyal Blue
MaterialElastomer
Electrical Properties
Resistance10^6 - 10^8 ohm
Physical Properties
Surface PatternEmbossed
Thickness0.08 Inch
Environmental Condition
ResistsAbrasion
Supporting Information
For Use WithConstant Monitor Systems
