ACL Staticide Dualmat 8185 Static Dissipative Table Mat

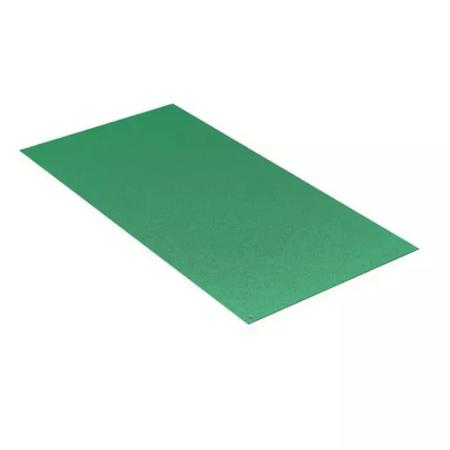

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:8185

EIS #:PH13-8185

Series #:8185

MFR #:8185

EIS #:PH13-8185

Series #:8185

0
0
Dualmat is a chemically cross-linked material with different electrical resistances on each side. Because it is inherently cross-linked the material will not delaminate and is volume conductive. Embossed finish reduces glare and prevents parts from slipping. The layers are permanently dissipative with polymers that will not lose electrical properties, will not exudate and more importantly will not outgas and contaminate clean room environments. The material is as durable as rigid laminates, and as comfortable and appealing as softer rubber or vinyl mats. - This ESD mat is a static dissipative industrial-grade elastomer designed for use on tables and other grounded work bench surfaces. It is suitable for use with constant monitor systems. Unlike the competition's surface dissipative mats, the electrical properties of the Dualmat are volume dissipative. This material was developed to conform to the most stringent ESD and lead-free requirements.
$100.74
 - $2,189.88
Select from the options below
0
0
Dualmat is a chemically cross-linked material with different electrical resistances on each side. Because it is inherently cross-linked the material will not delaminate and is volume conductive. Embossed finish reduces glare and prevents parts from slipping. The layers are permanently dissipative with polymers that will not lose electrical properties, will not exudate and more importantly will not outgas and contaminate clean room environments. The material is as durable as rigid laminates, and as comfortable and appealing as softer rubber or vinyl mats. - This ESD mat is a static dissipative industrial-grade elastomer designed for use on tables and other grounded work bench surfaces. It is suitable for use with constant monitor systems. Unlike the competition's surface dissipative mats, the electrical properties of the Dualmat are volume dissipative. This material was developed to conform to the most stringent ESD and lead-free requirements.

Product Options

Showing 1 out of 1 options
The image shown is representative of the product family and may not specifically be the individual item.
Length
36 Inch
Width
24 Inch
EIS Part #
ACL8185GM2436
$ / Piece

Attributes

General Information
Item NameTable Mat
Trade NameDualmat™
Series8185
General Features
StandardsANSI/ESD S20.20, STM 7.1, ASTM F-150, NFPA-99, UL-779, EN 100015, DIN 51953 and IEC-61340-5-1
TypeStatic Dissipative
Design & Construction
ColorGreen
MaterialElastomer
Electrical Properties
Resistance10^6 - 10^8 ohm
Physical Properties
Thickness0.08 Inch
Surface PatternEmbossed
Environmental Condition
ResistsAbrasion
Supporting Information
For Use WithConstant Monitor Systems
