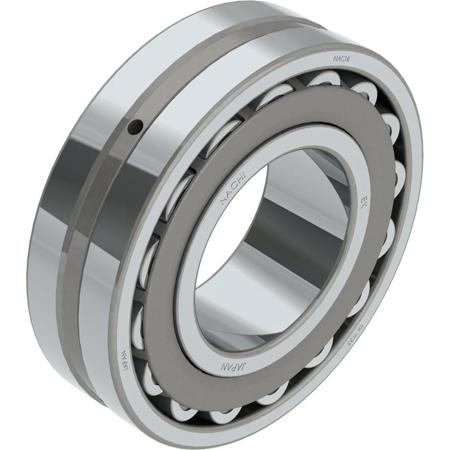

Nachi 22317EXQW33VCS147BNL - 22300 Series Vibrating Screen Bearing
MFR #:22317EXQW33VCS1
EIS #:22317EXQW33VCS147
UPC #:4991893507690
MFR #:22317EXQW33VCS1
EIS #:22317EXQW33VCS147
UPC #:4991893507690
Low Stock
Min Qty:1
|Qty Increment:1
Nachi is proud to introduce our new Vibrating Screen Bearing for applications with high impact or heavy vibrations. Nachi integrated a hardened steel cage into the standard EXQ High Capacity Bearings. The EXQ-V cage is 10 times more impact-resistant than standard cages.
$298.32 / Piece
Min Qty:1
|Qty Increment:1
Nachi is proud to introduce our new Vibrating Screen Bearing for applications with high impact or heavy vibrations. Nachi integrated a hardened steel cage into the standard EXQ High Capacity Bearings. The EXQ-V cage is 10 times more impact-resistant than standard cages.
- Attributes
- Features
Attributes
General Information
Item NameVibrating Screen Bearing
General Features
Net Weight15.98 lb
Design & Construction
Bore TypeCylindrical
Cage MaterialNitrocarburized Steel
Inner Ring MaterialJIS SUJ2 Steel
Outer Ring MaterialJIS SUJ2 Steel
Rolling Element MaterialJIS SUJ2 Steel
Performance Details
Dynamic Load Capacity665000 N
Operating Temperature200 °C (392 °F)
Precision ClassSpecial
Speed Rating2600 rpm (Grease) | 3400 rpm (Oil)
Static Load Capacity585000 N
Physical Properties
Bore Diameter85 mm
Outside Diameter180 mm
Overall Width60 mm
Radial Internal ClearanceC4 (Special)
Features
- The new EXQ-V cage has increased tensile strength is more fatigue resistant and more resistant to wear
- Nachi’s EXQ-V spherical roller bearing design maintains high load capacities by utilizing the longest length largest diameter rollers in the market
- The floating guide ring and new EXQ-V cage design generates less heat and promotes lower operating temperatures
- (W33) = Lubricant groove and holes on outer ring
