MFR #:7000031342
EIS #:3M69X.75
UPC #:00054007273110
MFR #:7000031342
EIS #:3M69X.75
UPC #:00054007273110
In Stock
Min Qty:1
|Qty Increment:1
Pack:1 Roll/Carton, 48 Roll/Case

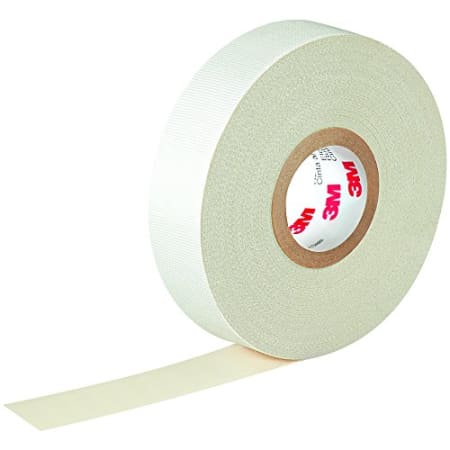

Scotch® Glass Cloth Electrical Tape 69 features a pressure sensitive, high temperature, thermosetting, silicone adhesive that offers excellent bonding once adhered. This conformable tape has a glass cloth backing that resists rotting and shrinking while providing excellent stability. It withstands a temperature range of 32 to 392 °F (0 to 200 °C). UL Listed, Mil I 19166C, CSA Certified and RoHS 2011/65/EU Compliant.
Scotch® Tape 69 is a premium grade, edge tear resistant, electrical tape. This printable tape has a non corrosive adhesive and offers solvent resistant protection. It is used as a coil cover, an anchor, a banding, a core, a layer and a crossover insulator. The flame retardant tape is suitable for 600V rated, dry location application motors and transformers.
$45.56 / Roll
Pack: 1 Roll/Carton, 48 Roll/Case
Min Qty:1
|Qty Increment:1
Pack:1 Roll/Carton, 48 Roll/Case
Scotch® Glass Cloth Electrical Tape 69 features a pressure sensitive, high temperature, thermosetting, silicone adhesive that offers excellent bonding once adhered. This conformable tape has a glass cloth backing that resists rotting and shrinking while providing excellent stability. It withstands a temperature range of 32 to 392 °F (0 to 200 °C). UL Listed, Mil I 19166C, CSA Certified and RoHS 2011/65/EU Compliant.
Scotch® Tape 69 is a premium grade, edge tear resistant, electrical tape. This printable tape has a non corrosive adhesive and offers solvent resistant protection. It is used as a coil cover, an anchor, a banding, a core, a layer and a crossover insulator. The flame retardant tape is suitable for 600V rated, dry location application motors and transformers.
Product Options
Showing 8 out of 24 options
![]() | Width: 6 Inch | EIS Part #: 3M69X6 | $ / Roll | |
![]() | Width: 3 Inch | EIS Part #: 3M69X3 | $ / Roll | |
![]() | Width: 2.75 Inch | EIS Part #: 3M69X2.75 | $ / Roll | |
![]() | Width: 2.5 Inch | EIS Part #: 3M69X2.5 | $ / Roll | |
Width: 2 Inch | EIS Part #: 3M69X2 | $ / Roll | ||
![]() | Width: 1.875 Inch | EIS Part #: 3M69X1.875 | $ / Roll | |
![]() | Width: 1.75 Inch | EIS Part #: 3M69X1.75 | $ / Roll | |
Width: 1.5 Inch | EIS Part #: 3M69X1.5 | $ / Roll |
- Attributes
- Applications
- Features
- Documents
Attributes
General Information
Item NameTape
Trade Name3M
Series69
General Features
Shelf Life60 Months
Design & Construction
Adhesive TypeSilicone
Backing MaterialGlass Cloth
ColorWhite
Performance Details
Adhesive Strength40 oz/Inch
Breaking Strength180 lb/Inch
Flame RetardantYes
Electrical Properties
Dielectric Strength3000 V
Physical Properties
Core Size3 Inch
Elongation5%
Width0.75 Inch
Length36 Yard
Thickness7 Mil
Environmental Condition
Temperature Rating32 °F
Applications
- For Coil Cover, Anchor, Banding and Core, Layer and Crossover Insulation
Features
- Glass cloth tape with a high temperature, thermosetting, silicone adhesive
- Adhesive provides an increased bond once applied in areas of high ambient temperatures
- Edge tear resistant conformable, high temperature flame resistant
- Temperature rating of 32 to 392 °F
