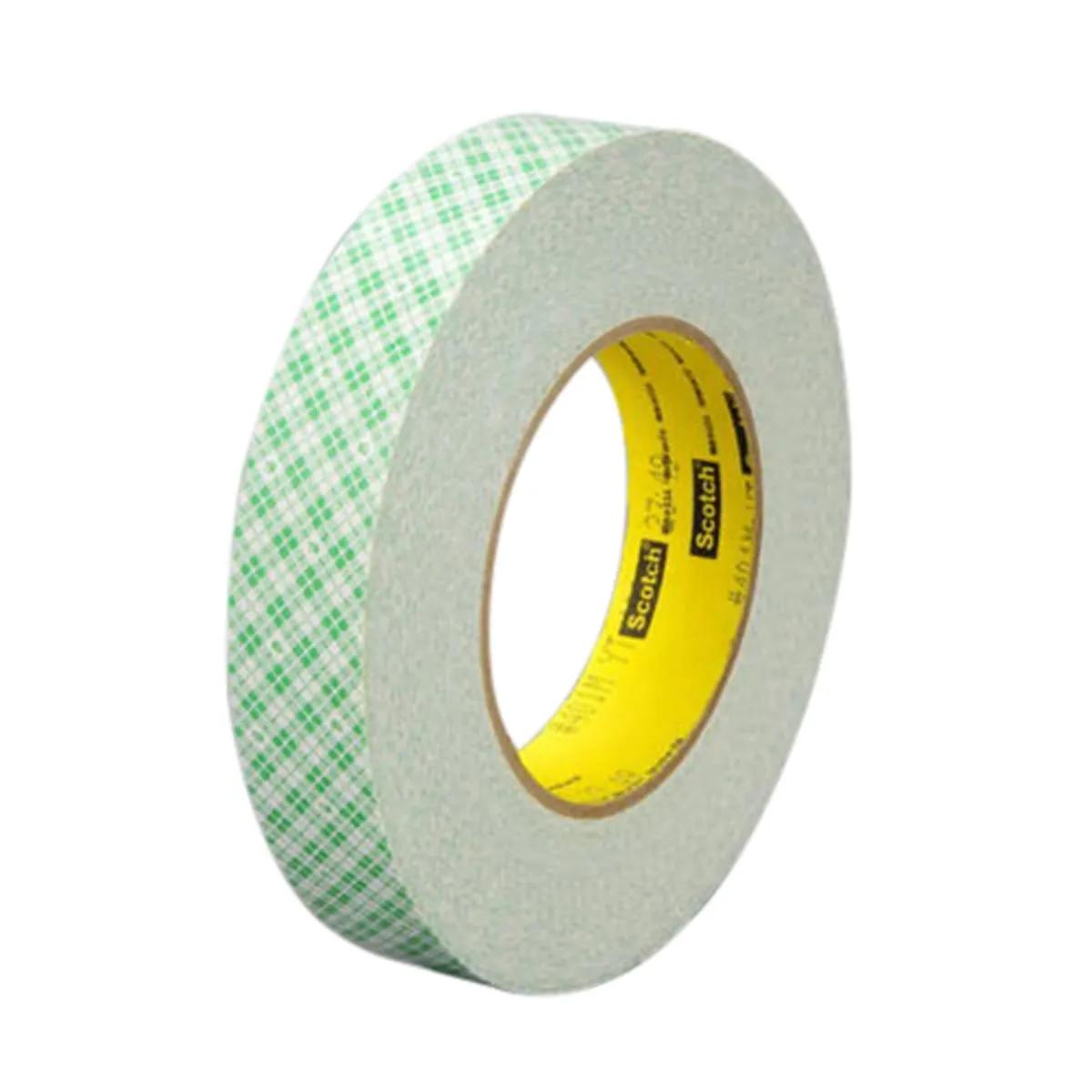

3M 401M is a 9 Mil double coated paper tape with rubber adhesive 860 on a 3 Mil green plaid paper liner. Excellent balance of high initial adhesion and good holding power to a wide variety of material. The paper carrier has been specially treated to improve its strength and removability characteristics from high internal strength surfaces. - 9 Mil tape for temporary attaching or fixturing. High initial bond strength. Natural rubber double coated tape with heavy paper carrier for increased strength and dimensional stability. Offers good initial adhesion to a variety of surfaces.
Features
- Adhesive thickness of 3 Mil (Back-Side), 3 Mil (Face-Side)
- Temperature rating of -40 to 180 °F
Applications
- For Splicing and Core Starting of Papers, Foils, Films, Fabrics etc, Mounting Rubber or Photopolymer Printing Plates to Print Cylinders, Attaching of Golf Club Grips, Temporary Holding while Parts are being Finished in the Milling Process
General Information
| Item Name | Tape |
| Series | 401M |
General Features
| Type | Double-Coated |
| Shelf Life | 12 Months |
| Storage Temperature | 21 °C |
Design & Construction
| Adhesive Type | Natural Rubber |
| Applicable Material | Papers, Foils, Films, Fabrics |
| Carrier Material | Treated Paper |
| Color | Natural/White with Green Plaid Liner |
| Liner Material | Densified Kraft Paper |
Performance Details
| Adhesive Strength | 65 oz/Inch |
| Shear Strength | 6 psi |
Physical Properties
| Adhesive Thickness | 3 mil |
| Core Size | 3 Inch |
| Width | 1 Inch |
| Length | 36 Yard |
| Liner Thickness | 3 mil |
| Thickness | 9 Mil |
Environmental Condition
| Resists | Chemical, Humidity, Moisture, Solvent, Temperature, UV |
| Temperature Rating | 180 °F |
Supporting Information
| Applicable Materials | Papers, Foils, Films, Fabrics |
