MFR #:8200R
EIS #:PH13-8260R
Series #:8200R
MFR #:8200R
EIS #:PH13-8260R
Series #:8200R

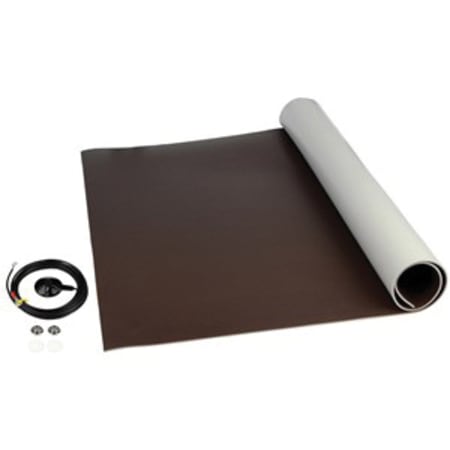

The top color layer is durable static dissipative vinyl, which has sufficiently low resistance to discharge static-laden conductors, yet will help prevent the shorting of pins on the backs of printed circuit boards laid on the mat. The middle layer is a highly-conductive scrim that provides the main discharge path to ground, and the bottom layer is static-dissipative foam, providing a durable nonskid cushion. - 8200 series dissipative vinyl 3-layer mats and rolls are soft table mats with a 3-layer construction that meet ANSI/ESD S20.20 tested per worksurface standard ANSI/ESD S4.1 and ESD TR53. Compatible with constant monitors.
$704.83
Select from the options below
The top color layer is durable static dissipative vinyl, which has sufficiently low resistance to discharge static-laden conductors, yet will help prevent the shorting of pins on the backs of printed circuit boards laid on the mat. The middle layer is a highly-conductive scrim that provides the main discharge path to ground, and the bottom layer is static-dissipative foam, providing a durable nonskid cushion. - 8200 series dissipative vinyl 3-layer mats and rolls are soft table mats with a 3-layer construction that meet ANSI/ESD S20.20 tested per worksurface standard ANSI/ESD S4.1 and ESD TR53. Compatible with constant monitors.
Product Options
Showing 2 out of 2 options
Color: Blue | EIS Part #: 8264-3M | $ / each | ||
Color: Brown | EIS Part #: 8261-3M | $ / each |
- Attributes
- Features
Attributes
General Information
Item NameTable Mat
Series8200R
General Features
StandardsRoHS Compliant, ANSI/ESD S20.20, S4.1
Type3-Layer, Dissipative, Runner
Design & Construction
MaterialVinyl Top, Scrim Middle, Foam Bottom
Physical Properties
Length24 ft
Surface PatternSmooth
Thickness0.14 Inch
Width2 ft
Supporting Information
For Use WithConstant Monitor Systems
Includes(2) 3040 15 ft Ground Cords, (2) 3050 Snap Fasteners
Features
- Lead-free
- 1 x 10^6 - < 1 x 10^9 ohm surface to ground, surface to surface
- 78 shore A hardness (top)
