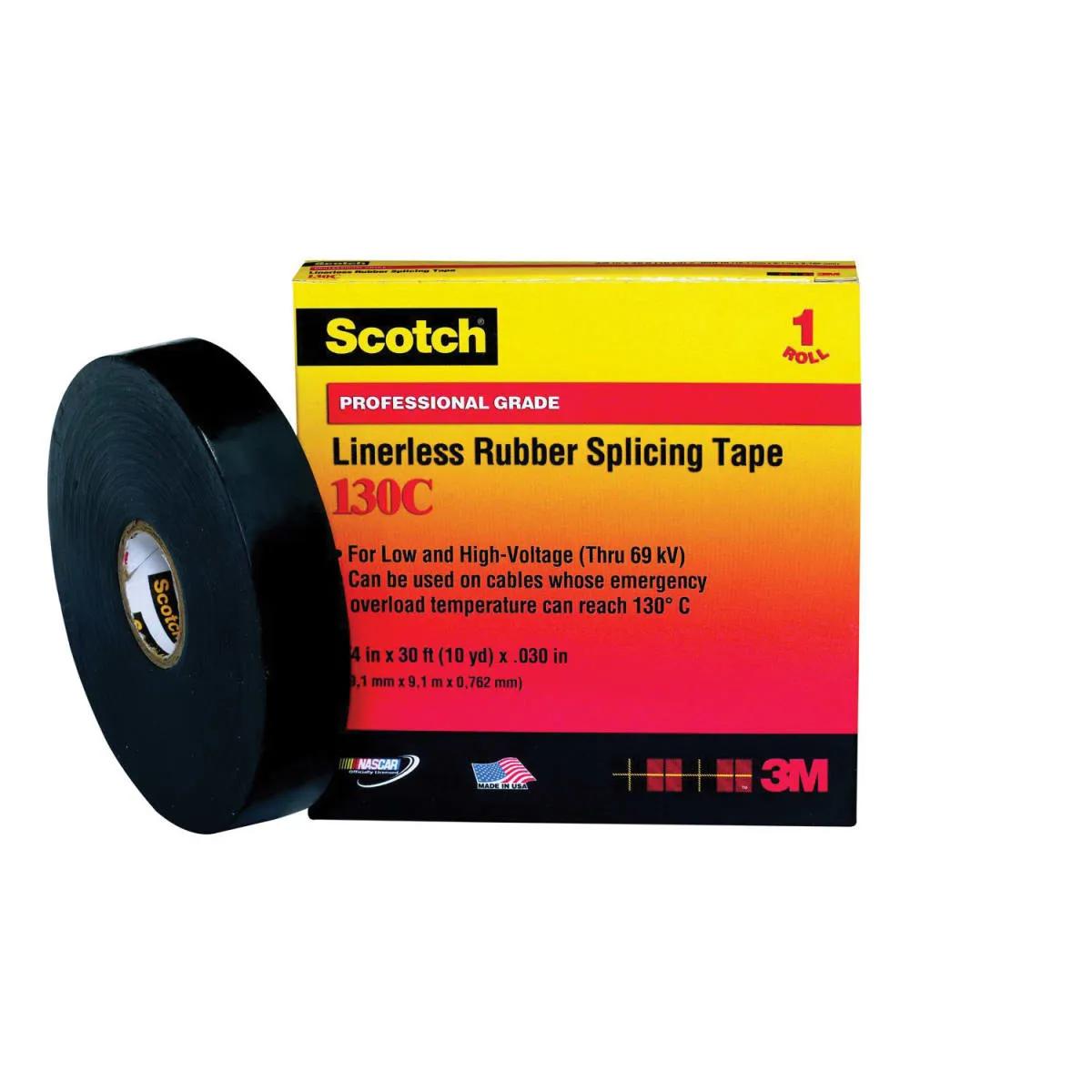

3M 130C Scotch® Premium Ethylene Rubber Splicing Tape
- MFR #130C
- EIS #PH22-130C
$40.01 - $95.70
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Why Buy From EIS?
- Authorized Distributor
- Fast Shipping
- Technical Support Available
Products You May Also Like
| Stock Status | |||
|---|---|---|---|
 | 2 Inch | $ / Roll Pack: 1 Roll/Carton, 12 Roll/Case | |
 | 1 Inch | $ / Roll Pack: 1 Roll/Carton, 24 Roll/Case | |
 | 1.5 Inch | $ / Roll Pack: 1 Roll/Carton, 12 Roll/Case | |
 | 0.75 Inch | $ / Roll Pack: 1 Roll/Carton, 24 Roll/Case |
Scotch linerless rubber splicing tape 130C is a highly conformable, linerless, ethylene rubber (EPR), high-voltage insulating tape, formulated to provide excellent thermal dissipation of splice heat. The tape is designed for use in splicing and terminating wires and cables. - Rated up to 90 °C continuous operating temperatures and short-term 130 °C overload service. The tape has excellent physical and electrical properties, which provide immediate moisture seals and void-free build-ups. This product can be used for low and high-voltage (through 69 kV) applications.
Features
- Linerless, self-bonding, insulating tape
- High thermal conductivity
- Excellent physical and electrical properties
- Designed to insulate splices and terminate cables whose overload temperatures can reach 130 °C
- Physical and electrical properties are unaffected by the degree of stretch
- Compatible with common, solid dielectric cable insulation
- Uniform tape unwind from roll
- Stable over wide application temperature range
- Dissipates heat from splicing
- Self sticking/amalgamating
Applications
- For Longhaul/Metro Loop Network, Jacketing (Secondary Insulation) on High-Voltage Splices and Terminations, Moisture-Sealing Electrical Connections, Bus Bar Insulation, End-Sealing High-Voltage Cables, Motor Leads, Jacket Repairs
General Information
| Item Name | Splicing Tape |
| Trade Name | Scotch® |
| Series | 130C |
General Features
| Type | Premium, Linerless |
| Shelf Life | 60 Months |
Design & Construction
| Adhesive Type | Rubber |
| Backing Material | Ethylene Rubber |
| Color | Black |
Performance Details
| Breaking Strength | 13 N/cm |
| Tensile Strength | 250 psi |
Electrical Properties
| Dielectric Strength | 750 V/mil |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 850% |
| Width | - |
| Length | 10 Yard |
| Thickness | 30 mil |
Environmental Condition
| Resists | UV, Weather |
| Temperature Rating | 194 °F |
