MFR #:7000140703
EIS #:3M1245X.5
UPC #:00054007275527
MFR #:7000140703
EIS #:3M1245X.5
UPC #:00054007275527
Temporarily Out of Stock
Min Qty:1
|Qty Increment:1
Pack:18/Case

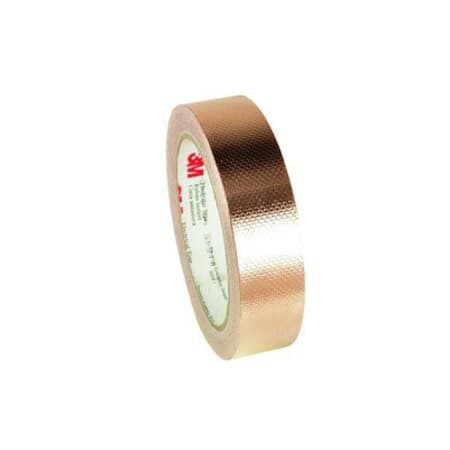

3M™ EMI Shielding Tape 1245 has embossed, deadsoft, copper foil backing with a pressure sensitive, acrylic adhesive that ensures firm adherence. The conductivity of the adhesive used in the tape offers good shielding effectiveness and stable contact resistance. The copper foil backing of the tape offers excellent resistance against oxidation and discoloration. Contact between the backing and the application substrate is established when the embossed backing edges cut through the adhesive layer. This flame retardant tape is designed for grounding and EMI shielding in equipment, components and shielded rooms. UL Listed and RoHS 2011/65/EU Compliant.
3M™ Embossed Copper Foil EMI Shielding Tape 1245 is an acrylic adhesive EMI shielding tape. This flame retardant tape is designed for applications that require outstanding electrical conductivity. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.
$42.60 / Roll
Pack: 18/Case
Min Qty:1
|Qty Increment:1
Pack:18/Case
3M™ EMI Shielding Tape 1245 has embossed, deadsoft, copper foil backing with a pressure sensitive, acrylic adhesive that ensures firm adherence. The conductivity of the adhesive used in the tape offers good shielding effectiveness and stable contact resistance. The copper foil backing of the tape offers excellent resistance against oxidation and discoloration. Contact between the backing and the application substrate is established when the embossed backing edges cut through the adhesive layer. This flame retardant tape is designed for grounding and EMI shielding in equipment, components and shielded rooms. UL Listed and RoHS 2011/65/EU Compliant.
3M™ Embossed Copper Foil EMI Shielding Tape 1245 is an acrylic adhesive EMI shielding tape. This flame retardant tape is designed for applications that require outstanding electrical conductivity. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameShielding Tape
Trade Name3M
Design & Construction
Adhesive TypeAcrylic
Backing MaterialCopper Foil
ColorCopper
Performance Details
Adhesive Strength35 oz/Inch
Breaking Strength25 lb/Inch
Flame RetardantYes
Physical Properties
Core Size3 Inch
Width0.5 Inch
Length18 Yard
Thickness4 Mil
Environmental Condition
ResistsOxidation, Discoloration
Features
- Embossed deadsoft 1 oz copper foil backing
- Conductivity through the adhesive
- Supplied on a removable liner for easy handling and die-cutting
- Copper foil backing is solderable and resists oxidation and discoloration
- Electrical resistance of 0.001 ohm
- Backing thickness of 1.4 Mil
Applications
- For Grounding and EMI Shielding in Equipment, Components, Shielded Rooms
