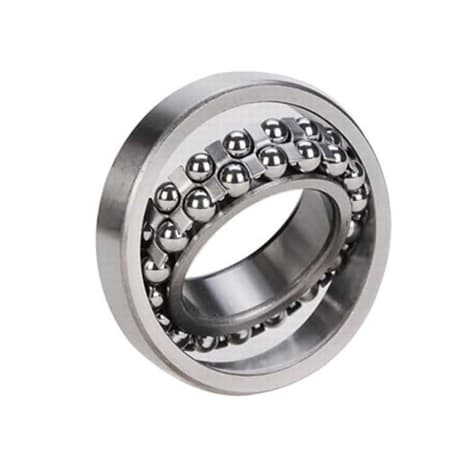

JTEKT Bearings 1203 - Open Type , 17 mm ID, 40 mm OD, 12 mm Width, C0 Internal Clearance
MFR #:1203
EIS #:120308
UPC #:605790000843
MFR #:1203
EIS #:120308
UPC #:605790000843
Out of Stock
Min Qty:1
|Qty Increment:1
1203 -Self-Aligning Ball Bearings, ligning Ball Bearings - Open Type
$32.36 / Piece
Min Qty:1
|Qty Increment:1
1203 -Self-Aligning Ball Bearings, ligning Ball Bearings - Open Type
- Attributes
- Features
Attributes
General Information
Item NameSelf-Aligning Ball Bearings
Series1200
General Features
Net Weight0.161 lb
Design & Construction
Bore TypeCylindrical
Cage MaterialSteel
Cage TypeRiveted
Closure TypeOpen
Lubrication TypeRust Preventative
Material52100
Retainer MaterialSteel
Retainer TypeRiveted
Rolling ElementBall
Rolling Element Material52100
Row TypeDouble row
Performance Details
Dynamic Load Capacity7.9 kn
Operating Temperature-30 to 120 °C
Precision ClassClass 0
Self AligningYes
Speed Rating16000 rpm (Grease) | 20000 rpm (Oil)
Static Load Capacity2.05 kn
Physical Properties
Bore Diameter17 mm
Fillet Radius0.0236 Inch
Outside Diameter40 mm
Overall Width12 mm
Radial Internal ClearanceC0
Features
- Best used for moderate to low radial load and low speed applications that have dynamic misalignment
- Capable of 2.5 (1200) to 3.0 (1300) degrees of misalignment in either direction
- Spherical roller path on outer ring allows from some misalignment and minor shaft deflection
- Made from premium high carbon, high chromium steel
