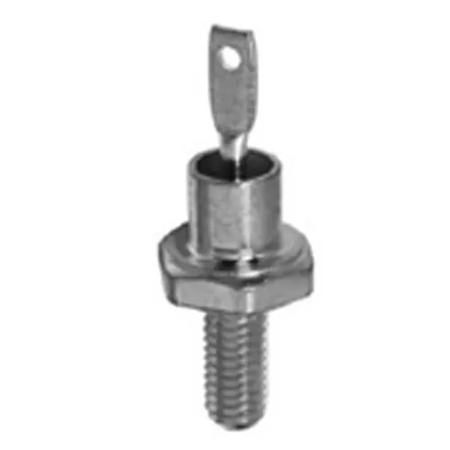

C and H Technology 16FR Standard Stud Version Recovery Diode, 16A, 1200V Repetitive Reverse Voltage, 1.23V Forward Voltage, Stud Reverse Polarity
MFR #:16FR120
EIS #:AA1612
MFR #:16FR120
EIS #:AA1612
In Stock
Min Qty:1
|Qty Increment:1
Vishay® Standard Stud Version Recovery Diode, -65 to 175 °C Operating. TYPICAL APPLICATIONS • Battery charges • Converters • Power supplies • Machine tool controls - Vishay® Standard Diodes Standard Recovery Rectifiers - Studs
$7.41 / each
Min Qty:1
|Qty Increment:1
Vishay® Standard Stud Version Recovery Diode, -65 to 175 °C Operating. TYPICAL APPLICATIONS • Battery charges • Converters • Power supplies • Machine tool controls - Vishay® Standard Diodes Standard Recovery Rectifiers - Studs
Product Options
Showing 8 out of 14 options
 | Amperage Rating: 150 A | Repetitive Reverse Voltage: 600 V | Diode Configuration: Stud Normal Polarity (Cathode To Stud) | EIS Part #: C15006 | $ / each | |
 | Amperage Rating: 85 A | Repetitive Reverse Voltage: 1200 V | Diode Configuration: Stud Reverse Polarity (Anode To Stud) | EIS Part #: BB8512 | $ / each | |
| Amperage Rating: 85 A | Repetitive Reverse Voltage: 600 V | Diode Configuration: Stud Reverse Polarity (Anode To Stud) | EIS Part #: BB8506 | $ / each | |
| Amperage Rating: 70 A | Repetitive Reverse Voltage: 1200 V | Diode Configuration: Stud Reverse Polarity (Anode To Stud) | EIS Part #: BB7012 | $ / each | |
| Amperage Rating: 70 A | Repetitive Reverse Voltage: 600 V | Diode Configuration: Stud Reverse Polarity (Anode To Stud) | EIS Part #: BB7006 | $ / each | |
| Amperage Rating: 40 A | Repetitive Reverse Voltage: 600 V | Diode Configuration: Stud Reverse Polarity (Anode To Stud) | EIS Part #: BB4006 | $ / each | |
| Amperage Rating: 85 A | Repetitive Reverse Voltage: 600 V | Diode Configuration: Stud Normal Polarity (Cathode To Stud) | EIS Part #: B8506 | $ / each | |
| Amperage Rating: 70 A | Repetitive Reverse Voltage: 1200 V | Diode Configuration: Stud Normal Polarity (Cathode To Stud) | EIS Part #: B7012 | $ / each |
- Attributes
- Features
Attributes
General Information
Item NameRecovery Diode
Trade NameVishay®
General Features
StandardsRoHS Compliant
TypeStandard, Stud Version
Design & Construction
Diode ConfigurationStud Reverse Polarity (Anode To Stud)
Package TypeDO-203AA (DO-4)
Mounting TypeStud
Performance Details
Operating Temperature175 °C
Electrical Properties
Amperage Rating16 A
Forward Current16 A
Forward Surge Current310 A
Forward Voltage1.23 V
Peak Reverse Current12 mA
Repetitive Reverse Voltage1200 V
Voltage Rating120 V
Features
- Stud cathode and stud anode version
- High surge current capability
- Wide current range
- Types up to 1200V VRRM
- Stud reverse polarity (anode to stud)
- Operating Temperature: -65 to 175 °C
