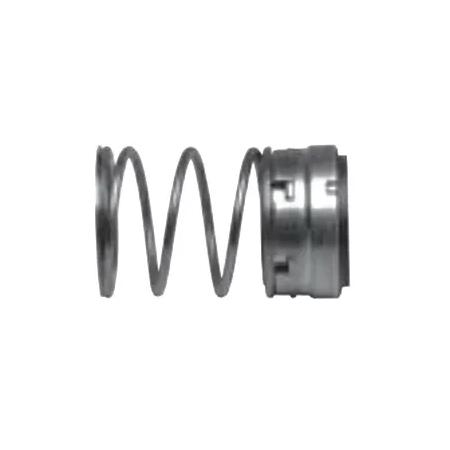

U.S. Seal US-754 Pump Seal, 1" Shaft, 1.5" OD, Buna-N
MFR #:PS-754
EIS #:PUMUS754
MFR #:PS-754
EIS #:PUMUS754
Out of Stock
Min Qty:1
|Qty Increment:1
U.S. Seal 1 Cup Mounted Pump Seal. - U.S. Seal 1 Cup Mounted Pump Seal.
$105.35 / each
Min Qty:1
|Qty Increment:1
U.S. Seal 1 Cup Mounted Pump Seal. - U.S. Seal 1 Cup Mounted Pump Seal.
Product Options
Showing 8 out of 131 options
 | Type: V Head Type | OEM ID: PUMVG979 | Shaft Size: 1.25 Inch | EIS Part #: PUMVG979 | $ / Piece | |
| Type: V Head Type | OEM ID: PUMVG978V | Shaft Size: 1.25 Inch | EIS Part #: PUMVG978V | $ / Piece | |
| Type: V Head Type | OEM ID: PUMVG978 | Shaft Size: 1.25 Inch | EIS Part #: PUMVG978 | $ / Piece | |
 | Type: V Head Type | OEM ID: PUMVG877 | Shaft Size: 0.75 Inch | EIS Part #: PUMVG877 | $ / Piece | |
| Type: V Head Type | OEM ID: PUMVG758 | Shaft Size: 1.5 Inch | EIS Part #: PUMVG758 | $ / each | |
| Type: V Head Type | OEM ID: PUMVG756 | Shaft Size: 1.25 Inch | EIS Part #: PUMVG756 | $ / Piece | |
 | Type: V Head Type | OEM ID: PUMVG702 | Shaft Size: 0.625 Inch | EIS Part #: PUMVG702 | $ / each | |
 | Type: V Head Type | OEM ID: PUMVG700 | Shaft Size: 0.625 Inch | EIS Part #: PUMVG700 | $ / Piece |
- Attributes
- Features
Attributes
General Information
Item NamePump Seal
SeriesU.S. Seal 1 Cup Mounted Pump Seal
General Features
TypeE Head Type
Design & Construction
MaterialBuna-N
Material SpecificationBCFJF
Performance Details
Pressure Rating350 psi
Physical Properties
Dimensions0.437 Inch T Seat x 1.562 Inch H Operating
Outside Diameter1.5 Inch
Seat Bore1.625 Inch
Shaft Size1 Inch
Environmental Condition
Temperature Rating400 °F
Supporting Information
OEM IDPUMUS754
Features
- Buna Secondary Seal, Carbon Ring, Stainless Steel Metal, Ceramic Mating Ring, Stainless Steel Spring
- E head type
- 1 Cup mounted mating ring design
- Self adjusting elastomer bellows compensate for abnormal shaft end play and primary face sealing wear
- Effects of radial and axial shaft end play are minimized by uniform spring pressure
- Positive drive is transmitted through the drive band and drive notches, which absorb breakout and running torque
- Damaging stresses on the elastomer bellows are prevented
- Slippage is eliminated, thus protecting shaft and sleeve against wear and scoring
- The result is long seal life
- The seal's large single-coil spring is much sturdier than a multiple spring construction design
- The spring is non-clogging, self-cleaning and will not foul up due to fluid contact
- Corrosion and clogging problems are eliminated
- Temperature Rating: -40 to 400 °F
