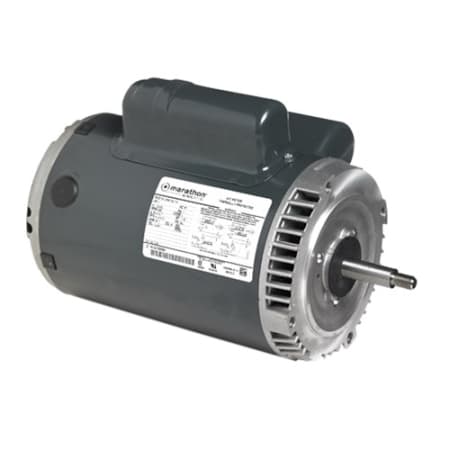

Marathon C329 Pump Motor, 1/3 HP, 3600 rpm, 56J Frame, DP
MFR #:5KC37FN65X
EIS #:MOTC329
MFR #:5KC37FN65X
EIS #:MOTC329
Out of Stock
Min Qty:1
|Qty Increment:1
Marathon pump motor has automatic thermal protector. Horizontal or vertical orientation. - Marathon Pump Motor, Ball Bearing, Continuous Duty, Dripproof Enclosure, 56J Frame, 60 Hz, Class B Insulation, 0.625 Inch Shaft Dia, Horizontal Shaft, Start Method: Switch And Mechanical, 40 °C, 115/208 - 230V.
$387.62 / Piece
Min Qty:1
|Qty Increment:1
Marathon pump motor has automatic thermal protector. Horizontal or vertical orientation. - Marathon Pump Motor, Ball Bearing, Continuous Duty, Dripproof Enclosure, 56J Frame, 60 Hz, Class B Insulation, 0.625 Inch Shaft Dia, Horizontal Shaft, Start Method: Switch And Mechanical, 40 °C, 115/208 - 230V.
Product Options
Showing 3 out of 3 options
 | HP Rating: 1 HP | Speed Rating: 3450 rpm | Frame Type: 56J | EIS Part #: MOTC335 | $ / Piece | |
 | HP Rating: 1 HP | Speed Rating: 3450 rpm | Frame Type: 56C | EIS Part #: MOTC334 | $ / Piece | |
 | HP Rating: 0.33 HP | Speed Rating: 3600 rpm | Frame Type: 56J | EIS Part #: MOTC329 | $ / Piece |
- Attributes
- Features
Attributes
General Information
Item NamePump Motor
SeriesMA-115-ODP-PM
General Features
Net Weight14 lb
StandardsUL Listed, CSA Certified
Design & Construction
Frame Type56J
KVA CodeM
RotationClockwise
Bearing TypeBall
DutyContinuous
Enclosure TypeDripproof
Insulation TypeClass B
Shaft PositionHorizontal
Start MethodSwitch And Mechanical
Performance Details
Speed Rating3600 rpm
Full Load Efficiency52.5%
Electrical Properties
Full Load Ampere6.4 A
HP Rating0.33 HP
Service Factor1.75
Frequency Rating60 Hz
Phase1-Phase
Voltage Rating115 V
Physical Properties
Dimensions11.22 Inch L x 5.66 Inch W
Shaft Length2.39 Inch
Weight14 lb
Frame Size56
Shaft Diameter0.625 Inch
Environmental Condition
Temperature Rating40 °C
Thermal ProtectionYes
Features
- Voltage Rating: 115/208 - 230V
- Full Load Ampere: 6.4A at 115V, 3.0 - 3.2A at 208 - 230V
