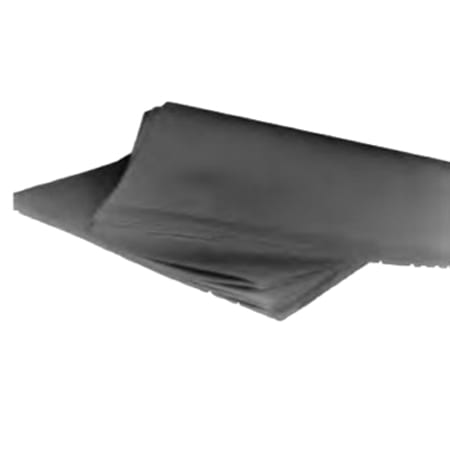

Nomex® 410 is used in almost every known sheet insulation application. This high-density product has high inherent dielectric strength, mechanical toughness, flexibility and resilience. It is produced in thicknesses ranging from 0.05 mm (2 mil) to 0.76 mm (30 mil), with specific gravities ranging from 0.7 to 1.2. Visit our video channel to learn more about Paper Type Sheet!
Min Qty:1
|Qty Increment:1
Nomex® 410 is used in almost every known sheet insulation application. This high-density product has high inherent dielectric strength, mechanical toughness, flexibility and resilience. It is produced in thicknesses ranging from 0.05 mm (2 mil) to 0.76 mm (30 mil), with specific gravities ranging from 0.7 to 1.2. Visit our video channel to learn more about Paper Type Sheet!
- Attributes
- Features
- Applications
Attributes
General Information
Design & Construction
Performance Details
Electrical Properties
Physical Properties
Features
- Exceptional thermal stability - temperatures up to 200 °C have little or no effect on the electrical and mechanical properties of Nomex� and useful values are retained at considerably higher temperatures, What's more, these useful properties are maintained for at least 10 years of continuous exposure at 220 °C
- Outstanding mechanical toughness - densified Nomex� products are strong and resilient with good resistance to tearing and abrasion, thinner grades are also flexible
- Inherent dielectric strength in densified form, Nomex� withstands short-term electrical stresses of 18 kV/mm (457 mil) to 40 kV/mm (1015 mil), depending on product type and thickness, with no need for further treatment with varnishes or resins
- Broad chemical compatibility - Nomex� is essentially unaffected by most solvents and is unusually resistant to attacks by acids and alkalis. It is compatible with all classes of varnishes and adhesives, transformer fluids, lubricating oils and refrigerants
- Excellent flame resistance - Nomex� products do not melt and, with a limiting oxygen index (LOI) at 220 °C above 20.8 (the critical value for combustion in normal air), they do not support combustion
- 3.7 N (machine direction of paper), 7.2 N (cross direction of paper) Elmendorf tear
- 48 N (machine direction of paper), 27 N (cross direction of paper) initial tear strength
- 0.6% (machine direction of paper), 0.1% (cross direction of paper) shrinkage at 300 °C
- 2.7 at 60 Hz dielectric constant
- 6 @ 60 Hz (x 10^-3) dissipation factor
- 1400 V/Mil full wave impulse
- 11# (machine direction), 5.6# (cross machine direction) tear resistance
- Tensile Strength: 227 N/cm (MD), 116 N/cm (CD)
Applications
- Large Power, Medium Voltage and High Voltage (>1.2 kV), Medium Voltage, General Purpose (>1.2 kV), Medium Voltage, Substation (>1.2 kV), Low Voltage, General Purpose/Specialty (<1.2 kV), HVT/Microwave Power, UPS/Data Center/Converter, Lighting Ballast, Traction, Welding, Mining, Power Conversion
