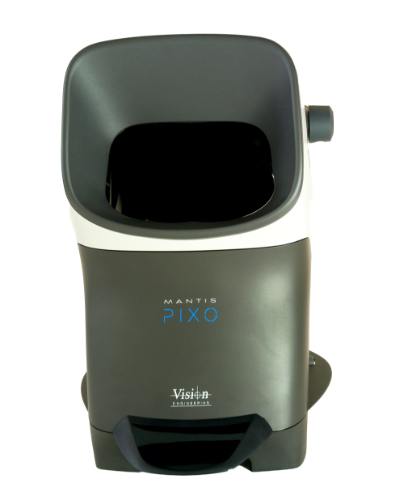

Vision Engineering MPH003 Mantis PIXO Head White/UV, Eyepiece-Less Optical Stereo Microscope With Integrated Digital Camera And Dynamic View Optics
MFR #:MPH003
EIS #:MPH003-VIS
MFR #:MPH003
EIS #:MPH003-VIS
Out of Stock
Min Qty:1
|Qty Increment:1
The Mantis family consists of three models, PIXO, ERGO and IOTA, giving you the ability to choose the right option for your requirement. Whether you need a full featured inspection system supporting video and image capture, annotation, display of custom overlays; a multi-view optical only system with magnification up to 15x, or a simple compact system with up to 8x magnification, Mantis is the right system for you
$5,300.00 / Package
Min Qty:1
|Qty Increment:1
The Mantis family consists of three models, PIXO, ERGO and IOTA, giving you the ability to choose the right option for your requirement. Whether you need a full featured inspection system supporting video and image capture, annotation, display of custom overlays; a multi-view optical only system with magnification up to 15x, or a simple compact system with up to 8x magnification, Mantis is the right system for you
- Attributes
- Features
- Applications
- Warranty
Attributes
General Information
Item NameMicroscope Head
Trade NameMantis PIXO
SeriesMantis
Design & Construction
External Connections/InterfaceUSB-C
Sensor TypeRear-Illuminated CMOS
Performance Details
Resolution2592 x 1994 px
Technical Details
Frames Per Second48 FPS
Color Temperature5500K
Interface TypeSuperSpeed USB 3.0
Physical Properties
Depth10.8 inch
Height14.6 inch
Weight4.5 kg
Width8.6 inch
Supporting Information
Power Supply100 - 240 V;50/60 Hz
Features
- High Quality Optical Stereo Image
- Ergonomic Working Position
- Long Working Distance
- Integrated High-Definition Camera
- Video And Image Capture
- On Screen Annotation
- Custom Overlays
- Magnification 3X – 15X
- 3 Lens Multi-View Turret
- Dynamic 3D Lighting
- White/UV Lighting Option
