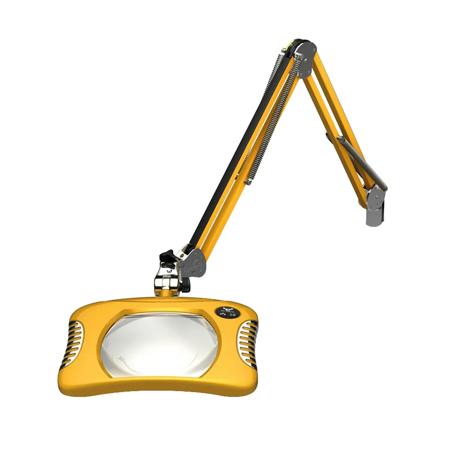

Green-Lite LED Magnifier has a 7 Inch x 5-1/4 Inch rectangular 4 diopter lens, a 43 Inch reach and a table edge clamp fitting. Green-Lites employ next generation “surface mount” LEDs that produce more light with less glare, consume less power and last longer. The light output of the 8W LED array is comparable to a 150W halogen. The blended white light is easy on the eyes and the output level is adjustable - simply and precisely - for maximum operator comfort. Green-Lites products are auto-switchable, too, so they can be used worldwide simply by changing the end power cord. - Green-Lite carbon black rectangular LED Magnifier with table edge clamp. It is equipped with next generation, surface-mount LEDs, these innovative designs create the new standard for illuminated magnifiers. Multi-angle LEDs for shadowless lighting at a full range of focal lengths and heights. Patented Elite arms are slim but have the greatest holding power of any arm of this type in the world.
$1,350.61 / Piece
Min Qty:1
|Qty Increment:1
Green-Lite LED Magnifier has a 7 Inch x 5-1/4 Inch rectangular 4 diopter lens, a 43 Inch reach and a table edge clamp fitting. Green-Lites employ next generation “surface mount” LEDs that produce more light with less glare, consume less power and last longer. The light output of the 8W LED array is comparable to a 150W halogen. The blended white light is easy on the eyes and the output level is adjustable - simply and precisely - for maximum operator comfort. Green-Lites products are auto-switchable, too, so they can be used worldwide simply by changing the end power cord. - Green-Lite carbon black rectangular LED Magnifier with table edge clamp. It is equipped with next generation, surface-mount LEDs, these innovative designs create the new standard for illuminated magnifiers. Multi-angle LEDs for shadowless lighting at a full range of focal lengths and heights. Patented Elite arms are slim but have the greatest holding power of any arm of this type in the world.
Product Options
Showing 8 out of 19 options
Lamp Type: LED/Ultraviolet | Color: Silver | EIS Part #: 82400-4-UV-S-OCW | $ / Piece | ||
Lamp Type: LED/Ultraviolet | Color: Racing Green | EIS Part #: 82400-4-UV-RG-OCW | $ / Piece | ||
Lamp Type: LED/Ultraviolet | Color: Shadow White | EIS Part #: 82400-4-UV-OCW | $ / Piece | ||
Lamp Type: LED/Ultraviolet | Color: Medical White | EIS Part #: 82400-4-UV-MW-OCW | $ / Piece | ||
Lamp Type: LED/Ultraviolet | Color: Charcoal Mist | EIS Part #: 82400-4-UV-CM-OCW | $ / Piece | ||
Lamp Type: LED/Ultraviolet | Color: Blaze Yellow | EIS Part #: 82400-4-UV-BY-OCW | $ / Piece | ||
Lamp Type: LED/Ultraviolet | Color: Blaze Red | EIS Part #: 82400-4-UV-BR-OCW | $ / Piece | ||
Lamp Type: LED/Ultraviolet | Color: Brilliant Orange | EIS Part #: 82400-4-UV-BO-OCW | $ / Piece |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameIlluminated Magnifier
Trade NameGreen-Lite®
Series82400
General Features
StandardsUL Listed, CE, cRUus Certified, ESD Compliant
Design & Construction
ColorBlaze Yellow
Lamp TypeLED/Ultraviolet
Head TypeRectangular
Lens MaterialGlass
MaterialDie-Cast Aluminum Head, Steel Arms
MountingTable Edge Clamp
Power SourceAC
Reach43 Inch
Technical Details
Diopter4
Lamp IncludedYes
Lamp Life50000 hr
Magnification2X
Electrical Properties
Voltage Rating100 - 240V
Wattage8 w
Physical Properties
Lens Size7 Inch x 5.25 Inch
Features
- Highest lumen output in a lighted magnifier
- Reduced glare, heat and energy consumption
- Multi-angle LED's for shadowless lighting at a full range of focal lengths and heights
- User controlled LED groups shine desired level of light exactly where required
- Superb dimming software via convenient, reliable membrane switch
- Precision ground, optical grade glass
- Largest lenses in the industry
- Low voltage (15 - 24V) power supplies are auto-switchable with worldwide approvals
- Plug in around the world by simply switching the end power cord
- Auto shut off at 4 hr intervals prevents energy waste while users are away
- High quality die cast aluminum shades and all steel arm components for ESD safety
- EZ swivel die cast knuckle allows for precision holding power at any angle
- Patented elite arms are slim but have the greatest holding power of any arm of this type in the world
Applications
- For Close-up Inspection, Assembly, Rework, and other General Small-Area
