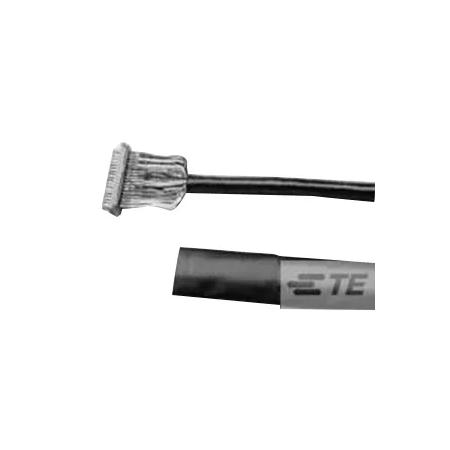

TE Connectivity Raychem® RNF-150 2:1 Flame-Retardant Heat Shrink Tubing, 1/8", 500' Per Spool, Black
MFR #:NB15734001
EIS #:RNF1501/8BLK
Series #:Raychem® RNF-150
MFR #:NB15734001
EIS #:RNF1501/8BLK
Series #:Raychem® RNF-150
Out of Stock
Min Qty:1
|Qty Increment:1
Approximately 40 percent thinner walls than most general purpose polyolefin tubings. High flame-resistance. Excellent physical and electrical properties after exposure to many chemicals and solvents at 50 °C [122 °F]. - Recommended maximum temperature for use as a primary insulator: 135 °C [275 °F]. No dripping, flowing or cracking (4 hr At 250 °C) of heat shock.
$519.16 / 100Foot
Min Qty:1
|Qty Increment:1
Approximately 40 percent thinner walls than most general purpose polyolefin tubings. High flame-resistance. Excellent physical and electrical properties after exposure to many chemicals and solvents at 50 °C [122 °F]. - Recommended maximum temperature for use as a primary insulator: 135 °C [275 °F]. No dripping, flowing or cracking (4 hr At 250 °C) of heat shock.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameHeat Shrink Tubing
Trade NameRaychem®
SeriesRaychem® RNF-150
General Features
TypeHigh Performance, Flame-Retardant
Design & Construction
ColorBlack
Insulation MaterialCross-Linked Polyolefin
Minimum Shrink Temperature110 °C
Wall TypeSingle
Performance Details
Flame RetardantYes
Heat Aging4 hr
Heat Shock4 hr
Low Temperature Flexibility55 °C
Shrink Ratio2:1
Tensile Strength4000 psi
Electrical Properties
Dielectric Strength500 V/Mil
Physical Properties
Elongation300%
Expandable Diameter0.125 Inch
Length500 ft
Recovered Diameter0.062 Inch
Wall Thickness0.01 Inch
Water Absorption0.5%
Environmental Condition
Reflow Temperature150 °C
Features
- Length: 500 ft Per Spool
- Volume Resistivity: 10^11 Ohm-cm
- Wall Thickness: 0.010 +/- 0.002 Inch (Recovered)
- Low Temperature Flexibility: -55 °C
- Temperature Rating: -55 to 150 °C
Applications
- Can be Used for Jacketing and Bundling of Wires to Form Light-Duty Harnesses, Especially Where a Low Profile, Abrasion Resistance, and Flexibility are Needed
