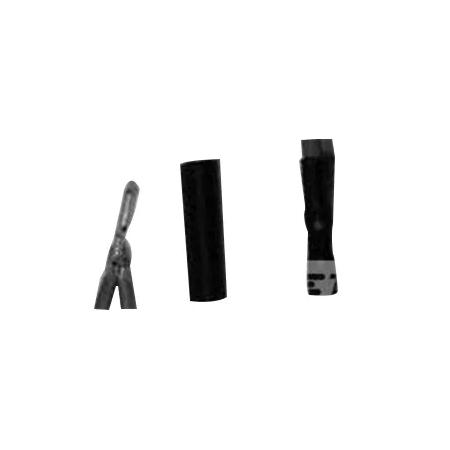

RT-3 tubing is ideally suited for wire strain-relief applications. It provides excellent strain relief and insulation of "weak points", transferring flex stress away from solder and crimp joints and other typically sensitive wire splice and termination points. - RT-3 is especially well suited for semi-automated production equipment requiring tubing with a tightly controlled expanded diameter. Sizes and expansion ratios of RT-3 are available for specific spade/disconnect terminals.
$27.66
- $64.00
Select from the options below
RT-3 tubing is ideally suited for wire strain-relief applications. It provides excellent strain relief and insulation of "weak points", transferring flex stress away from solder and crimp joints and other typically sensitive wire splice and termination points. - RT-3 is especially well suited for semi-automated production equipment requiring tubing with a tightly controlled expanded diameter. Sizes and expansion ratios of RT-3 are available for specific spade/disconnect terminals.
Product Options
Showing 2 out of 2 options
Length: 1.25 Inch | Expandable Diameter: 0.32 Inch | EIS Part #: RT32BLKX1.25 | $ / Piece | ||
Length: 2000 ft | Expandable Diameter: 0.32 Inch | EIS Part #: RT32BLK | $ / Foot |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameHeat Shrink Tubing
Trade NameRaychem®
SeriesRaychem® RT-3
General Features
TypeSemi-Rigid, Flame-Retardant
Design & Construction
ColorBlack
Insulation MaterialIrradiated Modified Polyolefin
Minimum Shrink Temperature110 °C
Wall TypeSingle
Performance Details
Heat Aging4 hr
Heat Shock4 hr
Low Temperature Flexibility55 °C
Shrink Ratio2.5:1
Tensile Strength2000 psi
Chemical Properties
Specific Gravity1.35
Electrical Properties
Dielectric Strength500 V/Mil
Physical Properties
Elongation200%
Wall Thickness0.031 Inch
Water Absorption0.5%
Environmental Condition
Reflow Temperature135 °C
Features
- Tightly controlled expanded diameters
- High abrasion resistance
- Semirigidity that transfers flex stress away from typically weak points such as solder and crimp joints, helping to ensure a reliable connection
- Excellent chemical and solvent resistance
- Outstanding physical and electrical performance
- Free of polybrominated biphenyls (PBBs) and polybrominated biphenyl oxides (PBBOs)
- No dripping, flowing or cracking (4 hr at 250 °C) of heat shock
- Low Temperature Flexibility: -55 °C
- Temperature Rating: -55 to 135 °C
Applications
- For Wire Strain-Relief Applications
