North American Electric PE587UZ-300-6C General Purpose Electric Motor, 300 HP, 1200 RPM, 587UZ Frame, 460V, 3PH, NEMA Design C, 60HZ, 1.15 S.F., TEFC, Crusher Duty, Cast Iron, Prem Eff, Inverter Rated

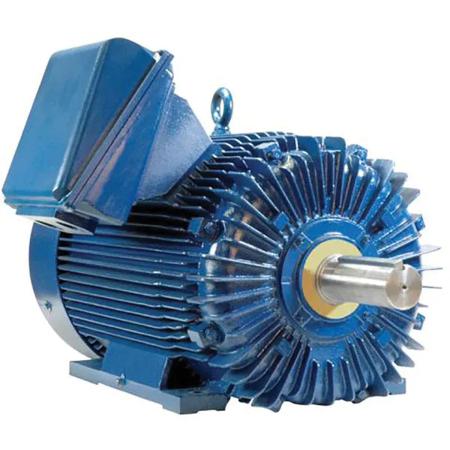

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:PE587UZ-300-6C

EIS #:PE587UZ-300-6C

MFR #:PE587UZ-300-6C

EIS #:PE587UZ-300-6C

Out of Stock

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
300 HP, Service factor: 1.15 @ 60 Hz, 1.0 @ 50 Hz, Suitable for 575V @ 1.0, NEMA Design B Performance/ High starting torgue, F1/F2 reversible, Dual-drilled feet for mounting flexibility, Lifting provisions, Class F insulation system, Class B rise at full load, Class H vacuum pressure impregnation (VPI) resin for all windings, Heavy duty cast iron housing with corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware, IP55 protection, Condensation drain with plugs - Three-phase, 300 HP, Design C, Totally enclosed fan cooled (TEFC), 143T-586/7UZ frame, Service factor: 1.15 @ 60 Hz, 1.0 @ 50 Hz, Suitable for 575V @ 1.0, NEMA Design B Performance/ High starting torgue, F1/F2 reversible, Dual-drilled feet for mounting flexibility, Lifting provisions
$34,669.53 / Piece

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
300 HP, Service factor: 1.15 @ 60 Hz, 1.0 @ 50 Hz, Suitable for 575V @ 1.0, NEMA Design B Performance/ High starting torgue, F1/F2 reversible, Dual-drilled feet for mounting flexibility, Lifting provisions, Class F insulation system, Class B rise at full load, Class H vacuum pressure impregnation (VPI) resin for all windings, Heavy duty cast iron housing with corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware, IP55 protection, Condensation drain with plugs - Three-phase, 300 HP, Design C, Totally enclosed fan cooled (TEFC), 143T-586/7UZ frame, Service factor: 1.15 @ 60 Hz, 1.0 @ 50 Hz, Suitable for 575V @ 1.0, NEMA Design B Performance/ High starting torgue, F1/F2 reversible, Dual-drilled feet for mounting flexibility, Lifting provisions

Product Options

Showing 8 out of 8 options
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
810.6 A
HP Rating:
600 HP
Frame Type:
586/7UZ
EIS Part #:
PE587UZ-600-4C
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
681.6 A
HP Rating:
500 HP
Frame Type:
586/7UZ
EIS Part #:
PE587UZ-500-6C
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
675.6 A
HP Rating:
500 HP
Frame Type:
586/7UZ
EIS Part #:
PE587UZ-500-4C
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
543 A
HP Rating:
400 HP
Frame Type:
586/7UZ
EIS Part #:
PE587UZ-400-6C
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
526.5 A
HP Rating:
400 HP
Frame Type:
586/7UZ
EIS Part #:
PE587UZ-400-4C
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
472.6 A
HP Rating:
350 HP
Frame Type:
586/7UZ
EIS Part #:
PE587UZ-350-6C
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
401.9 A
HP Rating:
300 HP
Frame Type:
586/7UZ
EIS Part #:
PE587UZ-300-6C
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
390.2 A
HP Rating:
300 HP
Frame Type:
586/7UZ
EIS Part #:
PE587UZ-300-4C
$ / Piece

Attributes

General Information
Item NameGeneral Purpose Electric Motor
SeriesNA-380-F1AF-TEFC-HDCI-GPM
General Features
TypeHigh Torque
StandardsCSA + CE + US Certification, ISO 9001 Certification, Meets or exceeds NEMA Premium® Efficiency Requirements defined by MG-1, Table 12-12 , Class I, Div II Groups ABCD, T2B
Design & Construction
Frame Type586/7UZ
KVA CodeG
ConstructionHeavy Duty Cast Iron
DutyContinuous
Enclosure TypeTotally Enclosed Fan-Cooled
Insulation TypeClass F
Mounting TypeF1 Assembly - Foot
RotationReversible
Seal TypeV
Performance Details
Speed Rating1200 rpm
Full Load Efficiency95%
1/2 Load Efficiency94%
3/4 Load Efficiency94.5%
Torque Rating1768 lb-ft
Electrical Properties
Full Load Ampere401.9 A
Full Load Power Factor84.5%
1/2 Load Power Factor76.3%
HP Rating300 HP
Locked Rotor Ampere2200 A
3/4 Load Power Factor82.2%
Frequency Rating50 Hz
Phase3-Phase
Service Factor1.0
Voltage Rating380 V
Physical Properties
Frame Size586
Weight5331 lb
Dimensions71.65 Inch L x 47.24 Inch H
Shaft Diameter3.875 Inch
Shaft Length11.63 Inch
Environmental Condition
Temperature Rating40 °C
