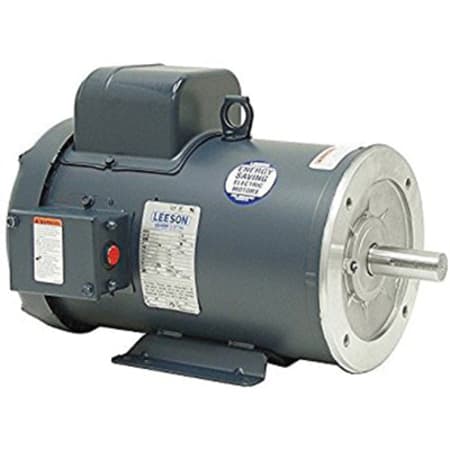

Leeson 131633 General Purpose Motor, 5 HP, 1800 rpm, 230V, 184TC Frame, TEFC, C-Face With Rigid Base Mount

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:131633.00

EIS #:MOT131633

UPC #:00069172001853

MFR #:131633.00

EIS #:MOT131633

UPC #:00069172001853

Out of Stock

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
Durable rolled steel construction. Continuous duty. Meets or exceeds NEMA service factors. Durable rolled steel construction. Continuous duty. Meets or exceeds NEMA service factors.
$1,736.17 / each

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
Durable rolled steel construction. Continuous duty. Meets or exceeds NEMA service factors. Durable rolled steel construction. Continuous duty. Meets or exceeds NEMA service factors.

Product Options

Showing 8 out of 8 options
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
2.6 A
Speed Rating:
900 rpm
Frame Type:
143TC
EIS Part #:
MOTLM24949
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
9.5 A
Speed Rating:
1800 rpm
Frame Type:
145TC
EIS Part #:
MOTLM24731
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
3.2 A
Speed Rating:
3600 rpm
Frame Type:
56C
EIS Part #:
MOTLM24134
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
2.8 A
Speed Rating:
1800 rpm
Frame Type:
S56C
EIS Part #:
MOTLM24076
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
227 A
Speed Rating:
1800 rpm
Frame Type:
445TC
EIS Part #:
MOTLM13737
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
12.8 A
Speed Rating:
1800 rpm
Frame Type:
184TC
EIS Part #:
MOT131857
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
23 A
Speed Rating:
1800 rpm
Frame Type:
184TC
EIS Part #:
MOT131633
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
6.4 A
Speed Rating:
1800 rpm
Frame Type:
143TC
EIS Part #:
MOT121680
$ / Piece

Attributes

General Information
Item NameGeneral Purpose Motor
Trade NameLeeson
SeriesLE-230-CFRB-TEFC-SF-GPM
General Features
TypeKF
StandardsUL Listed, CSA Approved, CE Certified
Design & Construction
Bearing TypeBall
ConstructionSteel Frame
DutyContinuous
Enclosure TypeTotally Enclosed Fan-Cooled
Frame Type184TC
Insulation TypeClass F
KVA CodeH
Mounting TypeC-Face with Rigid Base
RotationSelective Counter-Clockwise
Shaft PositionHorizontal
Start MethodCapacitor Start
Performance Details
Speed Rating1800 rpm
Full Load Efficiency81%
1/2 Load Efficiency82.3%
Overload ProtectorManual
3/4 Load Efficiency83.6%
Torque Rating15 lb-ft
Electrical Properties
Frequency Rating60
Full Load Ampere23 A
Full Load Power Factor92%
1/2 Load Power Factor79.5%
HP Rating5 HP
Locked Rotor Ampere149 A
Phase1-Phase
Service Factor1
3/4 Load Power Factor87.9%
Voltage Rating230 V
Physical Properties
Dimensions16.97 Inch L x 11.31 Inch H
Frame Size184
Shaft Diameter1.125 Inch
Shaft Length2.9 Inch
Weight107 lb
Environmental Condition
Thermal ProtectionYes
Temperature Rating40 °C
