Leeson LM24276 General Purpose Motor, 0.75 HP, 900 rpm, 230V, 145T Frame, TEFC, Rigid Base Mount

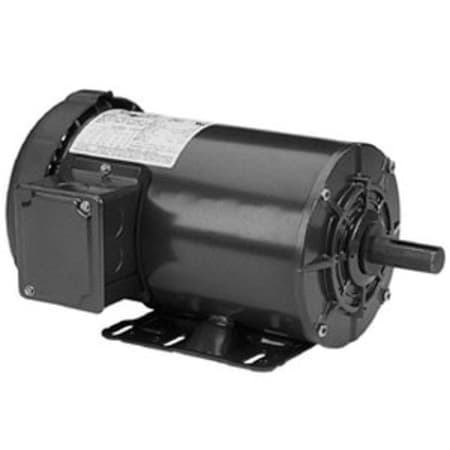

The image shown is representative of the product family and may not specifically be the individual item.

EIS #:MOTLM24276

EIS #:MOTLM24276

Out of Stock

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
Leeson General Purpose Motor, Bearing Type: Ball, Duty: Continuous, Enclosure Type: Totally Enclosed Fan-Cooled, Mounting Type: Rigid Base, Frequency Rating: 60 Hz, Voltage Rating: 230V. Durable rolled steel construction. Continuous duty. Meets or exceeds NEMA service factors. Thermally protected ratings
$1,758.63 / Piece

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
Leeson General Purpose Motor, Bearing Type: Ball, Duty: Continuous, Enclosure Type: Totally Enclosed Fan-Cooled, Mounting Type: Rigid Base, Frequency Rating: 60 Hz, Voltage Rating: 230V. Durable rolled steel construction. Continuous duty. Meets or exceeds NEMA service factors. Thermally protected ratings

Attributes

General Information
Item NameGeneral Purpose Motor
Trade NameLeeson
General Features
StandardsUL Listed, CSA Approved, CE Certified
Design & Construction
Bearing TypeBall
ConstructionSteel Frame
DutyContinuous
Enclosure TypeTotally Enclosed Fan-Cooled
Frame Type145T
Insulation TypeClass F
KVA CodeK
Mounting TypeRigid Base
RotationReversible
Performance Details
Speed Rating900 rpm
Full Load Efficiency0.7
Overload ProtectorNo
Electrical Properties
Frequency Rating60
Full Load Ampere4.8 A
HP Rating0.75 HP
Phase3-Phase
Service Factor1.15
Physical Properties
Dimensions14.87 Inch L x 9.24 Inch W x 7.34 Inch H
Frame Size145
Shaft Diameter0.8745 Inch
Shaft Length2.28 Inch
Weight49 lb
Environmental Condition
Temperature Rating40 °C
