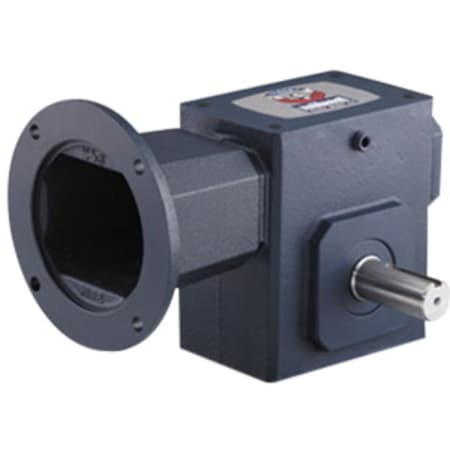

Leeson 826 Style BM Washdown Gear Reducer, 100:1 Gear Ratio, 0.4 HP, 1750 rpm Input, 0.24 HP, 18 rpm Output, 56C Frame
MFR #:GRG8260060.00
EIS #:MOTW8260060
MFR #:GRG8260060.00
EIS #:MOTW8260060
Out of Stock
Min Qty:1
|Qty Increment:1
Leeson Electric Style BM Washdown Gear Reducer, 2.62 Inch Center Distance, 56C Frame, Bronze Alloy Gear, Worm Gear, 1750 rpm Input, Cast Iron, Dual Lip Seal, Horizontal Shaft.
Leeson Electric Style BM Washdown Gear Reducer.
$1,570.94 / Piece
Min Qty:1
|Qty Increment:1
Leeson Electric Style BM Washdown Gear Reducer, 2.62 Inch Center Distance, 56C Frame, Bronze Alloy Gear, Worm Gear, 1750 rpm Input, Cast Iron, Dual Lip Seal, Horizontal Shaft.
Leeson Electric Style BM Washdown Gear Reducer.
Product Options
Showing 2 out of 2 options
 | Input HP: 0.4 HP | Output Speed: 18 rpm | Gear Ratio: 100:1 | EIS Part #: MOTW8260060 | $ / Piece | |
| Input HP: 1.12 HP | Output Speed: 35 rpm | Gear Ratio: 50:1 | EIS Part #: MOTW8260057 | $ / Piece |
- Attributes
- Applications
- Features
- Documents
Attributes
General Information
Item NameGear Reducer
Trade NameLeeson
Series826-BM-WGR
General Features
TypeStyle BM, Washdown
Design & Construction
Gear MaterialBronze
Gear TypeWorm
MaterialCast Iron
Seal TypeDual Lip
Shaft PositionHorizontal
Performance Details
Input Speed1750
Electrical Properties
Output HP0.24 HP
Physical Properties
Dimensions2.62 Inch Center Distance
Frame Size56
Applications
- For Industrial Use
Features
- Motorized, flexible coupling input solid output shaft
- Right-hand output shaft orientation
- Oversize high-speed bearings, positively retained for frequent reversing and start/stop cycles
- O-rings on all bearing covers, eliminating gaskets, sealants and leaks
- One-piece cast iron housings with single output cover design, CNC machined for precise component fit and alignment
- Directly interchangeable with other brands of cast iron worm reducers, including Baldor, Boston Browning, Dodge, Grove and Morse
- Ultimate application flexibility with all-angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles
