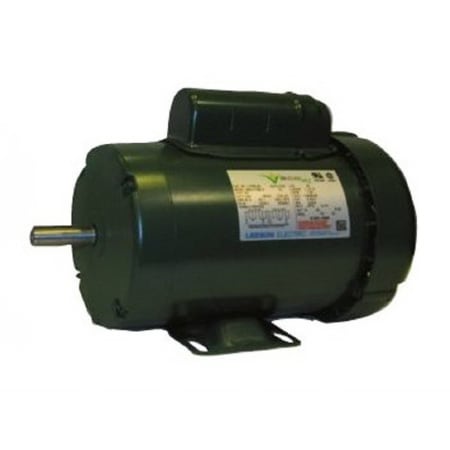

Leeson MOT117690 Farm Duty Motor, 1/2 HP, 1800 rpm, 115V, 208 - 230V, 56 Frame, TEFC, Rigid Base Mount
EIS #:MOT117690
EIS #:MOT117690
Out of Stock
Min Qty:1
|Qty Increment:1
Leeson ECO-Ag™ 230V 1-Phase Rigid Base Mount Totally Enclosed Fan-Cooled Enclosure Farm Duty Motor with Manual Overload Protector
Leeson 230V 1-Phase Rigid Base Mount Totally Enclosed Fan-Cooled Enclosure Farm Duty Motor. Gasketed capacitor cases and conduit box covers, Meets or exceeds NEMA service factors, Single phase and three phase designs, Double sealed ball bearings, Double shielded ball bearings on Ag fan motors
$314.84 / Piece
Min Qty:1
|Qty Increment:1
Leeson ECO-Ag™ 230V 1-Phase Rigid Base Mount Totally Enclosed Fan-Cooled Enclosure Farm Duty Motor with Manual Overload Protector
Leeson 230V 1-Phase Rigid Base Mount Totally Enclosed Fan-Cooled Enclosure Farm Duty Motor. Gasketed capacitor cases and conduit box covers, Meets or exceeds NEMA service factors, Single phase and three phase designs, Double sealed ball bearings, Double shielded ball bearings on Ag fan motors
- Attributes
- Features
- Applications
Attributes
General Information
Item NameFarm Duty Motor
Trade NameLeeson
General Features
Net Weight28.75 lb
StandardsUL Listed, CSA Certified
TypeKF, Premium Efficient
Design & Construction
Bearing TypeBall
ConstructionRolled Steel
DutyContinous
Enclosure TypeTotally Enclosed Fan-Cooled
Frame Type56
Insulation TypeClass B
KVA CodeJ
Mounting TypeRigid Base
RotationSelective Counter-Clockwise
Shaft PositionHorizontal
Performance Details
Full Load Efficiency78%
1/2 Load Efficiency67.5%
Overload ProtectorManual
3/4 Load Efficiency74.5%
Torque Rating24 oz-ft
Electrical Properties
Frequency Rating60
Full Load Ampere5 A
Full Load Power Factor83%
1/2 Load Power Factor80.1%
HP Rating0.5 HP
Locked Rotor Ampere16.6 A
Phase1-Phase
Service Factor1.15
3/4 Load Power Factor85.6%
Physical Properties
Dimensions11.49 Inch L
Frame Size56
Number of Poles4
Shaft Diameter0.625 Inch
Shaft Length1.94 Inch
Weight28.75 lb
Environmental Condition
Thermal ProtectionYes
Features
- Gasketed capacitor cases and conduit box covers
- Meets or exceeds NEMA service factors
- Single phase and three phase designs
- Double sealed ball bearings
- Double shielded ball bearings on Ag fan motors
- Condensate drains on general purpose Ag motors
- Low temperature manual overload protected
- High and extra high starting torque ratings
- 1-year warranty
- Weep holes provide condensation drains
- Full Load Ampere: 5A at 115V, 2.5A at 208 - 230V
- Torque Rating: 24 oz-ft (Full Load), 70 oz-ft (Break Down), 48 oz-ft (Pull Up), 78 oz-ft (Locked Rotor)
- Voltage Rating: 115V, 208 - 230V
Applications
- For Use Where Exposure To Water, Dust And Dirt Exists. Ideally Suited For Use Farm / AG Equipment Such As Feeders, Conveyors, Fans, Grain Elevators, Silo Unloaders, And Other Demanding Farm Duty Equipment
