Timken® Fafnir® RCJT17/16T Two Bolt Ball Flange Unit | 36.53 mm 1.44 in Bore 72 mm 2.83 in OD

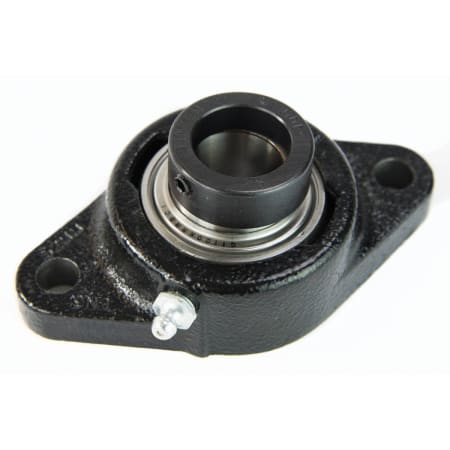

The image shown is representative of the product family and may not specifically be the individual item.  Designed to maximize performance, Timken® Fafnir® ball bearing housedunits combine the bearing, housing, seal and locking system into one device f…

MFR #:RCJT1 7/16

EIS #:RCJT17/16T

UPC #:87796059252

MFR #:RCJT1 7/16

EIS #:RCJT17/16T

UPC #:87796059252

Out of Stock

Min Qty:1

  |

Qty Increment:1

Timken
Timken
Designed to maximize performance, Timken® Fafnir® ball bearing housedunits combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken Fafnir housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line
$204.72 / Piece

Min Qty:1

  |

Qty Increment:1

Timken
Timken
Designed to maximize performance, Timken® Fafnir® ball bearing housedunits combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken Fafnir housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line

Attributes

General Information
Item NameFafnir Ball Housed Unit
General Features
Net Weight2.558 lb
TypeWide Inner Ring Ball Bearing Insert
Design & Construction
Bore TypeRound
Cage TypeOne Piece Molded Nylon
MaterialSteel
Retainer MaterialNylon
Retainer TypeOne Piece Molded Nylon
Rolling ElementBall
Rolling Element MaterialSteel
Performance Details
Dynamic Load Capacity5770 lb
Precision ClassISO Normal/ABEC1
Static Load Capacity3440 lb
Physical Properties
Bore Diameter1.438 Inch | 36.5252 mm
Outside Diameter2.8346 Inch | 71.99884 mm
Overall Height2.106 Inch | 53.4924 mm
Overall Length6.1259842519685 Inch | 155.6 mm
Overall Width3.63 Inch | 92.202 mm
Radial Internal ClearanceP(C3)
