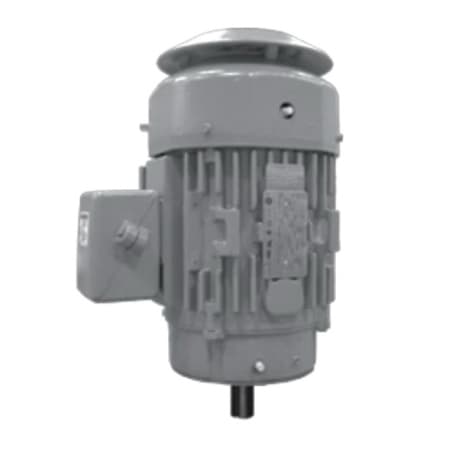

GE M9530 Extra Severe Duty Vertical Pump Motor, 60 HP, 1800 rpm, 460V, 364TC Frame, TEFC, W6, Shaft Down With C-Face Flange Mount
EIS #:M9530
EIS #:M9530
Out of Stock
Min Qty:1
|Qty Increment:1
$14,015.64 / Piece
Min Qty:1
|Qty Increment:1
- Attributes
- Features
Attributes
General Information
Item NameExtra Severe Duty Vertical Pump Motor
General Features
StandardsUL Listed, CSA Certified
Net Weight1027 lb
Design & Construction
Frame Type364TC
KVA CodeG
Performance Details
Speed Rating1800 rpm
Full Load Efficiency95%
Torque Rating176.8 lb-ft
Electrical Properties
Full Load Ampere71.7 A
Full Load Power Factor82.5%
HP Rating60 HP
Locked Rotor Ampere412.9 A
Physical Properties
Dimensions38.06 Inch L x 18.86 Inch W
Frame Size364.0
Number of Poles4
Shaft Diameter2.375 Inch
Shaft Length5.62 Inch
Weight1027 lb
Features
- IE3 premium efficiency
- Inverter duty capability
- Gegard2400� insulation system
- Six Star Bearing System�
- Low vibration/provisions for monitoring
- 4-point cast-in lifting lugs
- Extended grease fittings
- Torque Rating: 176.8 lb-ft (Full Load), 460.2 lb-ft (Break Down), 283.2 lb-ft (Locked Rotor)
