MFR #:5204ZZBV2S
EIS #:5204ZZBV2S02
UPC #:4991893599480
MFR #:5204ZZBV2S
EIS #:5204ZZBV2S02
UPC #:4991893599480
Low Stock
Min Qty:1
|Qty Increment:1

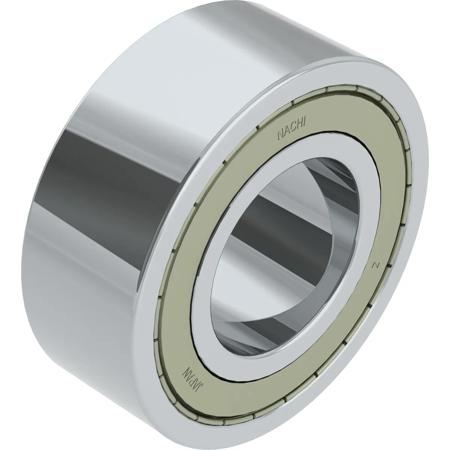

Double-Row Angular Contact Ball Bearings have a thinner width than 2 stacked Deep-Groove bearings can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle (α). The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.
$31.15 / Piece
Min Qty:1
|Qty Increment:1
Double-Row Angular Contact Ball Bearings have a thinner width than 2 stacked Deep-Groove bearings can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle (α). The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.
- Attributes
- Features
Attributes
General Information
Item NameDouble Row Angular Contact
General Features
Net Weight0.26 lb
Design & Construction
Bore TypeCylindrical
Cage MaterialJIS S55C Steel
Closure Type2 Shields
Inner Ring MaterialJIS SUJ2 Steel
Outer Ring MaterialJIS SUJ2 Steel
Rolling Element MaterialJIS SUJ2 Steel
Performance Details
Dynamic Load Capacity20000 N
Operating Temperature120 °C (248 °F)
Precision ClassP0
Speed Rating10000 rpm (Grease)
Static Load Capacity12700 N
Physical Properties
Bore Diameter20 mm
Outside Diameter47 mm
Overall Width20.6 mm
Radial Internal ClearanceCN/C0
Features
- (-2NS) = 2 NBR Contact Seals
- (ZZ) = 2 Shields
- (NR) = Snap Ring Snap Ring Groove on OD
- (C3) = C3 Radial Clearance
