EIS #:6204Z05
Series #:6204
UPC #:04012801059152
EIS #:6204Z05
Series #:6204
UPC #:04012801059152
Out of Stock
Min Qty:1
|Qty Increment:1

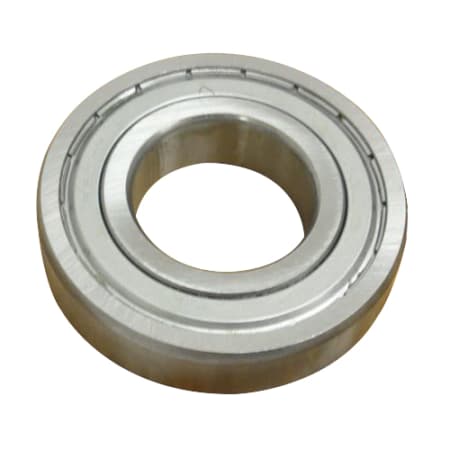

Schaeffler 6200 deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These products, which are of simple design, robust in operation and easy to maintain, are available in single and double row designs and in open and sealed variants. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields. Due to their low frictional torque, deep groove ball bearings are suitable for high speeds. - Schaeffler 6200 single row deep groove radial ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies.
$4.44 / Piece
Min Qty:1
|Qty Increment:1
Schaeffler 6200 deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These products, which are of simple design, robust in operation and easy to maintain, are available in single and double row designs and in open and sealed variants. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields. Due to their low frictional torque, deep groove ball bearings are suitable for high speeds. - Schaeffler 6200 single row deep groove radial ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameDeep Groove Radial Ball Bearing
Series6204
Design & Construction
Cage MaterialSheet Steel
Enclosure TypeSingle Shield
Lubrication TypeGrease
Performance Details
Dynamic Load Capacity13600 N
Static Load Capacity6600 N
Physical Properties
Bore Diameter20 mm
Fillet Radius1 mm
Number of Rows1
Outside Diameter47 mm
Width14 mm
Environmental Condition
Temperature Rating120 °C
Features
- Radial and axial load capacity, due to the raceway geometry and the balls used as rolling elements, deep groove ball bearings can support axial loads in both directions as well as radial loads
- Gap seal on one side
- Single row deep groove ball bearings are the most frequently used type of rolling bearing, they are produced in numerous sizes and designs and are particularly economical
- Clearance: C3
- Speed Rating: 22100 rpm Limiting, 16300 rpm Reference
- Temperature Rating: -30 to 120 °C
Applications
- Suitable For High Speeds
