MFR #:6003-2Z-L038-C3
EIS #:6003ZZ05
Series #:6003
UPC #:04012802648959
MFR #:6003-2Z-L038-C3
EIS #:6003ZZ05
Series #:6003
UPC #:04012802648959
Low Stock
Min Qty:1
|Qty Increment:1

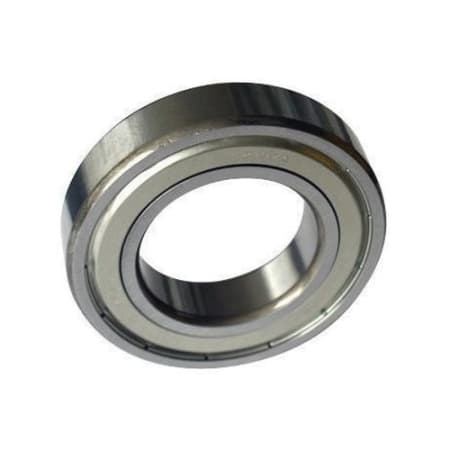

Schaeffler 6000 deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These products, which are of simple design, robust in operation and easy to maintain, are available in single and double row designs and in open and sealed variants. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields. Due to their low frictional torque, deep groove ball bearings are suitable for high speeds. - Schaeffler 6000 single row deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies.
$7.09 / Piece
Min Qty:1
|Qty Increment:1
Schaeffler 6000 deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These products, which are of simple design, robust in operation and easy to maintain, are available in single and double row designs and in open and sealed variants. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields. Due to their low frictional torque, deep groove ball bearings are suitable for high speeds. - Schaeffler 6000 single row deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies.
- Attributes
- Features
Attributes
General Information
Item NameDeep Groove Radial Ball Bearing
Series6003
General Features
Net Weight0.04kg
Design & Construction
Cage MaterialSheet Steel
Enclosure TypeDouble Shield
Lubrication TypeGrease
Performance Details
Dynamic Load Capacity6400 N
Static Load Capacity3250 N
Physical Properties
Bore Diameter17 mm
Fillet Radius0.3 mm
Number of Rows1
Outside Diameter35 mm
Width10 mm
Environmental Condition
Temperature Rating120 °C
Features
- Radial and axial load capacity, due to the raceway geometry and the balls used as rolling elements, deep groove ball bearings can support axial loads in both directions as well as radial loads
- Single row deep groove ball bearings are the most frequently used type of rolling bearing, they are produced in numerous sizes and designs and are particularly economical
- Clearance: C3
- Gap seals on both sides
- Speed Rating: 26000 rpm Limiting, 20300 rpm Reference
- Temperature Rating: -30 to 120 °C
