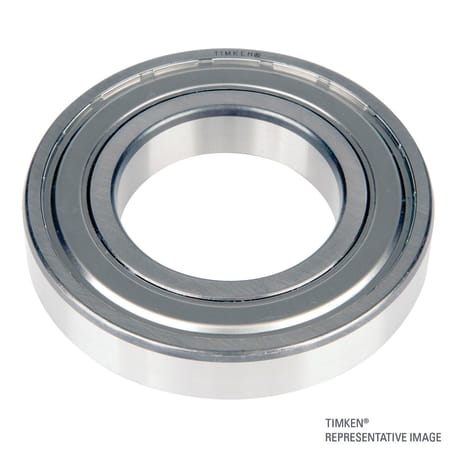

Timken 208WDDT Deep Groove Radial Ball Bearing | 18 mm 0.7 in Bore | 40 mm 1.6 in OD
MFR #:208WDD
EIS #:208WDDT
UPC #:87796041424
MFR #:208WDD
EIS #:208WDDT
UPC #:87796041424
Out of Stock
Min Qty:1
|Qty Increment:1
Timken supplies a full range of product in the world’s most popular design series. Timken® deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.
$185.36 / Piece
Min Qty:1
|Qty Increment:1
Timken supplies a full range of product in the world’s most popular design series. Timken® deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.
- Attributes
- Features
Attributes
General Information
Item NameDeep Groove Ball Bearing
Series200
General Features
Net Weight0.91 lb
TypeBall Bearing
Design & Construction
Bore TypeStraight
Closure Type2-Shield
MaterialSteel
Retainer MaterialCold Rolled Steel
Rolling ElementBall
Row TypeSingle
Performance Details
Dynamic Load Capacity8130 lb
Operating Temperature-50 °C To 120 °C
Precision ClassABEC1
Self AligningNo
Speed Rating16666.6666666667 rpm (Oil) | 13888.8888888889 rpm (Grease)
Static Load Capacity4460 lb
Physical Properties
Bore Diameter0.7087 Inch | 18 mm
Fillet Radius0.043 Inch | 1 mm
Outside Diameter1.5748 Inch | 40 mm
Overall Width3.1496 Inch | 80 mm
Radial Internal ClearanceR
Features
- Super finished raceways
- Quiet operations
- Light 200 Series have a close dimensional balance between bore, outside diameter and width making them well-suited for applications with light to medium loads and high speed
- Electric Motor Quality (EMQ)
