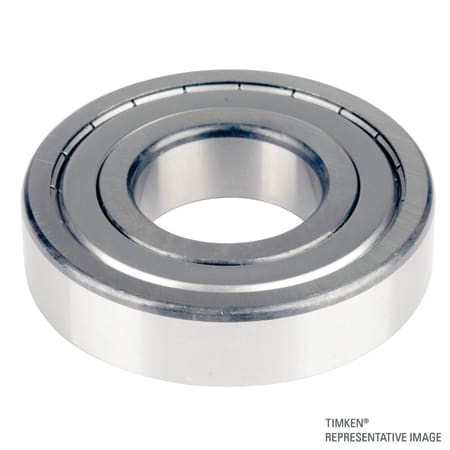

Timken 205KDDT Deep Groove Radial Ball Bearing | 25 mm 1 in Bore | 52 mm 2 in OD
MFR #:205KDD
EIS #:205KDDT
UPC #:87796045842
MFR #:205KDD
EIS #:205KDDT
UPC #:87796045842
Out of Stock
Min Qty:1
|Qty Increment:1
Timken supplies a full range of product in the world’s most popular design series. Timken® deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.
$32.48 / Piece
Min Qty:1
|Qty Increment:1
Timken supplies a full range of product in the world’s most popular design series. Timken® deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.
- Attributes
- Features
Attributes
General Information
Item NameDeep Groove Ball Bearing
Series200
General Features
Net Weight0.28 lb
TypeBall Bearing
Design & Construction
Bore TypeStraight
Closure Type2-Shield
MaterialSteel
Retainer MaterialCold Rolled Steel
Rolling ElementBall
Row TypeSingle
Performance Details
Dynamic Load Capacity3490 lb
Operating Temperature-50 °C To 120 °C
Precision ClassABEC1
Self AligningNo
Speed Rating14000 rpm (Oil) | 12000 rpm (Grease)
Static Load Capacity1760 lb
Physical Properties
Bore Diameter0.9843 Inch | 25 mm
Fillet Radius0.039 Inch | 1 mm
Outside Diameter2.0472 Inch | 52 mm
Overall Width0.5906 Inch | 15 mm
Radial Internal ClearanceP
Features
- Super finished raceways
- Quiet operations
- Light 200 Series have a close dimensional balance between bore, outside diameter and width making them well-suited for applications with light to medium loads and high speed
- Electric Motor Quality (EMQ)
