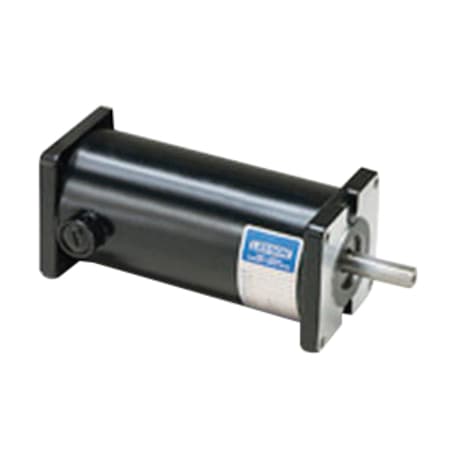

Leeson M1110015.00 DC Subfractional Motor, 1/15 HP, 3500 rpm, 115VAC, 24CS Frame, TENV, Square Flange Mount
MFR #:M1110015.00
EIS #:MOTM1110015
MFR #:M1110015.00
EIS #:MOTM1110015
Out of Stock
Min Qty:1
|Qty Increment:1
Leeson 115V Square Flange Mount Totally Enclosed Non-Ventilated Enclosure Reversible DC Subfractional Motor
Leeson 115V Square Flange Mount Totally Enclosed Non-Ventilated Enclosure Reversible DC Subfractional Motor. NEMA DC, explosion proof, SUB-FHP, wash-down, IEC and low voltage motors available, Dynamically balanced armatures, 30:1 constant torque operation, Compact, space saving design, Reversible rotation
$527.70 / each
Min Qty:1
|Qty Increment:1
Leeson 115V Square Flange Mount Totally Enclosed Non-Ventilated Enclosure Reversible DC Subfractional Motor
Leeson 115V Square Flange Mount Totally Enclosed Non-Ventilated Enclosure Reversible DC Subfractional Motor. NEMA DC, explosion proof, SUB-FHP, wash-down, IEC and low voltage motors available, Dynamically balanced armatures, 30:1 constant torque operation, Compact, space saving design, Reversible rotation
- Attributes
- Features
Attributes
General Information
Item NameDC Subfractional Motor
Trade NameLeeson
General Features
Type24CS
StandardsUL Listed, CSA Certified, CE Certified
Net Weight5 Lb
Design & Construction
Bearing TypeBall
Enclosure TypeTotally Enclosed Non-Ventilated
Insulation TypeClass F
MaterialRolled Steel
Mounting TypeSquare Flange
RotationReversible
Shaft PositionHorizontal
Performance Details
Speed Rating3500 rpm
Full Load Efficiency71.8%
Torque Rating19.2 oz-ft
Electrical Properties
Amperage Rating0.7 A
Armature Voltage90 V
Form Factor1.38
HP Rating0.067 HP
Service Factor1
Physical Properties
Frame Size24
Dimensions4.94 Inch L x 3 Inch W
Shaft Diameter0.3125 Inch
Features
- NEMA DC, explosion proof, SUB-FHP, wash-down, IEC and low voltage motors available
- Dynamically balanced armatures
- 30:1 constant torque operation
- Compact, space saving design
- Reversible rotation
- Permanent magnet designs
- PWM or SCR rated and low voltage input voltage designs
- Removable bolt-on base
- Oversized brushes for long brush life
- Easy access to brushes
- Constant torque throughout speed range
- DC Controls available to change the speed of the motors
- High starting torque
- Amperage Rating: 0.7A DC (Full Load)
