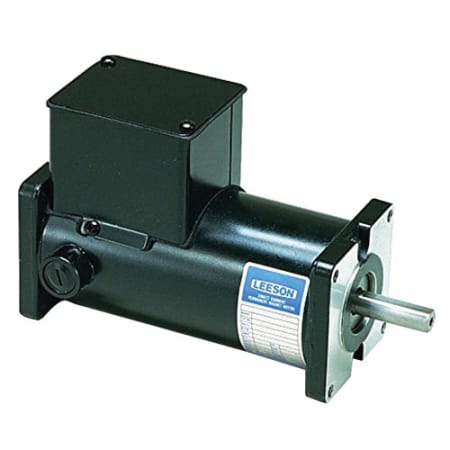

Leeson M1120046 DN DC Motor, 0.16 HP, 1800 rpm, 31 Frame
MFR #:M1120046.00
EIS #:MOTM1120046
Series #:MOTM11200
UPC #:00069172009084
MFR #:M1120046.00
EIS #:MOTM1120046
Series #:MOTM11200
UPC #:00069172009084
Out of Stock
Min Qty:1
|Qty Increment:1
Leeson DN DC Motor, Armature Voltage: 24VDC, Bearing Size: OPE 6201-13, PE 6201-13, Ball Bearing, Duty: Continuous, Enclosure Type: Totally Enclosed Non-Ventilated, Form Factor: 1, Frame Size: 31, Insulation Type: Class F, Lubrication Type: Grease, Mounting Type: Square Flange, Rotation: Reconnect, Service Factor: 1, Shaft Diameter: 0.5 Inch, Shaft Length: 1.5 Inch, Shaft Position: Horizontal, Temperature Rating: 40 deg C, Voltage Rating: 24VDC.
Leeson continuous duty class F DC motor.
$733.72 / each
Min Qty:1
|Qty Increment:1
Leeson DN DC Motor, Armature Voltage: 24VDC, Bearing Size: OPE 6201-13, PE 6201-13, Ball Bearing, Duty: Continuous, Enclosure Type: Totally Enclosed Non-Ventilated, Form Factor: 1, Frame Size: 31, Insulation Type: Class F, Lubrication Type: Grease, Mounting Type: Square Flange, Rotation: Reconnect, Service Factor: 1, Shaft Diameter: 0.5 Inch, Shaft Length: 1.5 Inch, Shaft Position: Horizontal, Temperature Rating: 40 deg C, Voltage Rating: 24VDC.
Leeson continuous duty class F DC motor.
Product Options
Showing 1 out of 1 options
 | HP Rating: 0.16 HP | Speed Rating: 1800 rpm | EIS Part #: MOTM1120046 | $ / each |
- Attributes
- Features
Attributes
General Information
Item NameDC Motor
Trade NameLeeson
SeriesMOTM11200
General Features
StandardsUL Listed, CSA Approved
TypeDN
Design & Construction
Enclosure TypeTotally Enclosed Non-Ventilated
DutyContinuous
Insulation TypeClass F
Lubrication TypeGrease
Mounting TypeSquare Flange
RotationReconnect
Shaft PositionHorizontal
Performance Details
Speed Rating1800 rpm
Full Load Efficiency72.8%
Torque Rating94 oz-Inch
Electrical Properties
Armature Voltage24 V
Form Factor1
Full Load Ampere14 A
HP Rating0.16 HP
Service Factor1
Voltage Rating24 VDC
Physical Properties
Dimensions9.45 Inch L x 4.16 Inch W x 5.012 Inch H
Shaft Length1.5
Weight9 lb
Bearing SizeOPE 6201-13, PE 6201-13, Ball Bearing
Frame Size31
Shaft Diameter0.5 Inch
Environmental Condition
Temperature Rating40 °C
Features
- Compact, space saving design
- Standard conduit box simplifies connections
- Ball bearing construction
- Long life brushes
- External access to brushes allows for easy replacement further prolonging motor life
- High starting torques
- Linear speed torque characteristics throughout the speed range
- Capable of dynamic braking for faster stops
- Reversible rotation
- Simple two lead connection
- Class F insulated with high temperature welded commutators
- Armature Voltage: 12-24V DC
- Voltage Rating: 12-24VDC
- HP Rating: 1/6-1/3 HP
- Speed Rating: 1800-3900 rpm
