MFR #:3012
EIS #:CAR3012X1.5
MFR #:3012
EIS #:CAR3012X1.5
Out of Stock
Min Qty:1
|Qty Increment:1

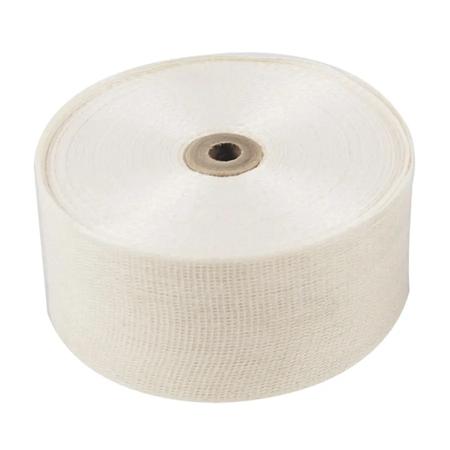

Despite the introduction of revolutionary man-made fabrics, plain woven cotton is still used in large quantities for electrical insulation, coil winding, and as component in transformers. Close weave, plain woven cotton tapes are used to wrap armatures, field coils, field coil supports, and transformer windings. Very strong and cost effective. These materials are also used to wrap cables, in electrical appliances, and as a sacrificial item in resin or shellac coating processes. This is an ASTM Type 1 material.
$15.97 / Roll
Min Qty:1
|Qty Increment:1
Despite the introduction of revolutionary man-made fabrics, plain woven cotton is still used in large quantities for electrical insulation, coil winding, and as component in transformers. Close weave, plain woven cotton tapes are used to wrap armatures, field coils, field coil supports, and transformer windings. Very strong and cost effective. These materials are also used to wrap cables, in electrical appliances, and as a sacrificial item in resin or shellac coating processes. This is an ASTM Type 1 material.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameCotton Tape
SeriesCAR30
General Features
TypePlain, Woven
Net Weight0.482 lbs/Rl
Design & Construction
Backing MaterialCotton
ColorNatural
Physical Properties
Core Size0.375 Inch
Width1.5 Inch
Length36 Yard
Thickness11 Mil
Environmental Condition
Temperature Rating105 °C
Features
- Very strong
- Cost-effective
- Easy and safe to handle
- To wrap armatures, field coils, field coil supports, cable wrap and transformer winding
- 30/Inch picks
Applications
- For Transformers, Motors, Generators, Switch Gears, Consumer Appliances and Electronic Equipment
