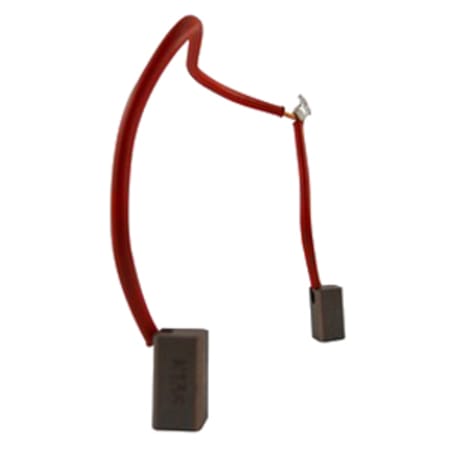

Helwig Carbon 36 Carbon Brush, 140A/sq-Inch, 3/4" L x 0.402" W x 0.377" T, K136 Grade, Copper Graphite
MFR #:36-374061
EIS #:36-374061
MFR #:36-374061
EIS #:36-374061
In Stock
Min Qty:1
|Qty Increment:1
Helwig Copper Graphite Carbon Brush. Copper graphite's have material contents of 15-95% copper or copper alloy. The added conductivity and lower voltage drop of the metals allows metal graphite brushes to perform well at very high current densities and low voltages.
Requires Quote / each
Min Qty:1
|Qty Increment:1
Helwig Copper Graphite Carbon Brush. Copper graphite's have material contents of 15-95% copper or copper alloy. The added conductivity and lower voltage drop of the metals allows metal graphite brushes to perform well at very high current densities and low voltages.
Product Options
Showing 3 out of 3 options
 | Thickness: 0.25 Inch | Width: 0.25 Inch | Brush Length: 0.438 Inch | EIS Part #: 8-H BRUSH | $ / each | |
 | Thickness: 0.377 Inch | Width: 0.402 Inch | Brush Length: 0.75 Inch | EIS Part #: 36-374061 | $ / each | |
 | Thickness: 0.281 Inch | Width: 0.281 Inch | Brush Length: 0.5 Inch | EIS Part #: 25-H BRUSH | $ / each |
- Attributes
- Features
Attributes
General Information
Item NameCarbon Brush
SeriesHelwig Copper Graphite Carbon Brush
General Features
TypeM25 Tamped Paired Brushes
Net Weight0.044 lb
Design & Construction
Connection TypeRing Terminal 0.195
GradeK136
MaterialCopper Graphite
Electrical Properties
Amperage Rating140
Physical Properties
Brush Length0.75 Inch
Concave Radius2
Shunt Length3 Inch
Thickness0.377 Inch
Width0.402 Inch
Supporting Information
For Use WithFractional HP Motor
Use WithFractional HP Motor
Features
- 4800 psi strength
- 0.0000130 ohm-Inch resistivity
- 0/0 bevel
- 18 shore hard
- Ohio motor manufacturer
