SKF 7319 BECBM Single Row Angular Contact Ball Bearing, 40 deg, 95 mm Bore x 200 mm OD x 45 mm W, Machined Brass

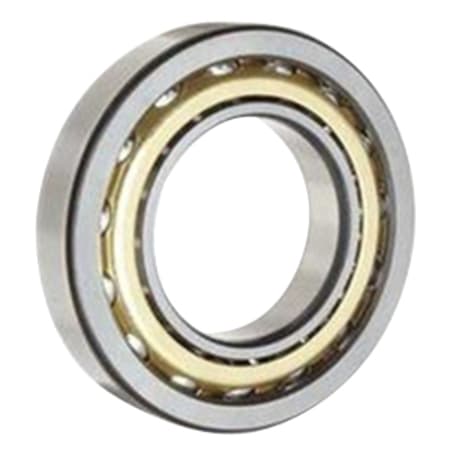

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:7319 BECBM

EIS #:7319BECBM04

Series #:7319

UPC #:07316577151223

MFR #:7319 BECBM

EIS #:7319BECBM04

Series #:7319

UPC #:07316577151223

Low Stock

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
SKF 7300 single row angular contact ball bearings can accommodate axial loads in one direction only. A single row bearing is typically adjusted against a second bearing. The bearings are non-separable and the bearing rings have one high and one low shoulder. The low shoulder enables a large number of balls to be incorporated in the bearing, giving it a relatively high load carrying capacity. - SKF 7300 Single Row Angular Contact Ball Bearing.
$1,337.58 / Piece

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
SKF 7300 single row angular contact ball bearings can accommodate axial loads in one direction only. A single row bearing is typically adjusted against a second bearing. The bearings are non-separable and the bearing rings have one high and one low shoulder. The low shoulder enables a large number of balls to be incorporated in the bearing, giving it a relatively high load carrying capacity. - SKF 7300 Single Row Angular Contact Ball Bearing.

Attributes

General Information
Item NameAngular Contact Ball Bearing
Series7319
General Features
Net Weight6.05kg
Design & Construction
Cage MaterialMachined Brass
Enclosure TypeOpen
Performance Details
Contact Angle40 deg
Dynamic Load Capacity180000 N
Static Load Capacity163000 N
Tolerance ClassP6, P5
Physical Properties
Bore Diameter95 mm
Fillet Radius2.5 mm
Number of Rows1
Outside Diameter200 mm
Width45 mm
