Timken angular contact ball bearings are designed to handle high-speeds with both radial and axial loads with reliable performance in pump, compressor, electric motor and many other industrial applications. Our Products offering includes a range of single-row universally matched, single-row standard, and double-row products with different cage types, contact angles and tolerances.
$972.72 / Piece
Min Qty:1
|Qty Increment:1
Timken angular contact ball bearings are designed to handle high-speeds with both radial and axial loads with reliable performance in pump, compressor, electric motor and many other industrial applications. Our Products offering includes a range of single-row universally matched, single-row standard, and double-row products with different cage types, contact angles and tolerances.
- Attributes
- Features
Attributes
General Information

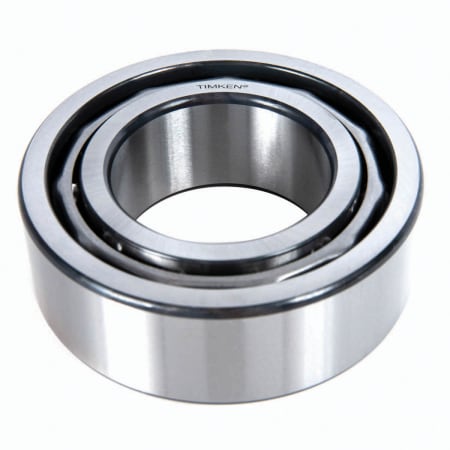

Item NameAngular Contact Ball Bearing
Series5400
General Features
Net Weight13.62 lb
TypeBall Bearing
Design & Construction
Bore TypeStraight
Cage TypeBall
Closure TypeOpen
MaterialSteel
Retainer MaterialSteel
Retainer TypeBall
Rolling ElementBall
Row TypeDouble
Performance Details
Contact Angle30°
Dynamic Load Capacity48700 lb
Operating Temperature-50 °C To 120 °C
Precision ClassABEC-1
Speed Rating72571.573714576 rpm (Oil) | 60476.3114288133 rpm (Grease)
Static Load Capacity44000 lb
Physical Properties
Bore Diameter2.3622 Inch | 59.99988 mm
Fillet Radius0.083 Inch | 2.1082 mm
Number of Bearings1
Outside Diameter5.9055 Inch | 149.9997 mm
Overall Width2.625 Inch | 66.675 mm
Features
- Enhanced raceway finish
- Quiet operation
- Dimensionally interchangeable
