Varflex Varglas A397 Class F Grade C-1 Acrylic Coated Sleeving, 8 AWG, 250' Per Spool, Natural

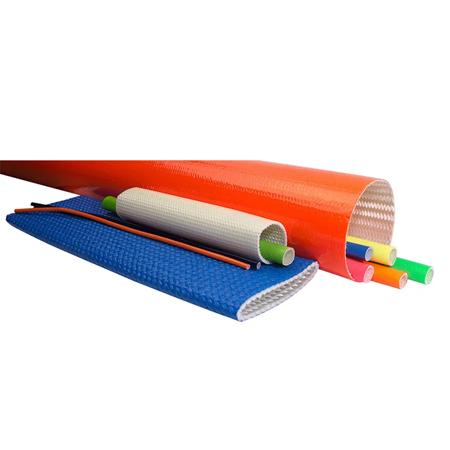

The image shown is representative of the product family and may not specifically be the individual item. Varglas 343 acrylic sleevings are produced by curing a modified acrylic resin on a continuous fiberglass braid, with A397 acrylic best characteriz…

MFR #:2311013X-BLU-CUT

EIS #:ACRC08NFV

Series #:Varglas A397-C-1

MFR #:2311013X-BLU-CUT

EIS #:ACRC08NFV

Series #:Varglas A397-C-1

Out of Stock

Min Qty:1

  |

Qty Increment:1

0
0
Varglas A397 acrylic sleevings are produced by curing a modified acrylic resin on a continuous fiberglass braid, with A397 acrylic best characterized by its flexibility. Both are resistant to most acids, organic solvents, oils and water and exhibit fair resistance to alkalies. - They are compatible with modified polyester, acrylic, epoxy, phenolic and formvar wire enamels and are designed to perform for long periods in a 155 °C range without loss of any electrical or physical properties.
$55.45 / 100Foot

Min Qty:1

  |

Qty Increment:1

0
0
Varglas A397 acrylic sleevings are produced by curing a modified acrylic resin on a continuous fiberglass braid, with A397 acrylic best characterized by its flexibility. Both are resistant to most acids, organic solvents, oils and water and exhibit fair resistance to alkalies. - They are compatible with modified polyester, acrylic, epoxy, phenolic and formvar wire enamels and are designed to perform for long periods in a 155 °C range without loss of any electrical or physical properties.

Product Options

Showing 8 out of 21 options
The image shown is representative of the product family and may not specifically be the individual item. Varglas 343 acrylic sleevings are produced by curing a modified acrylic resin on a continuous fiberglass braid, with A397 acrylic best characteriz…
Length:
500 ft
Gauge:
18 AWG
Color:
Natural
EIS Part #:
ACRC18NHV
$ / Foot
The image shown is representative of the product family and may not specifically be the individual item. Varglas 343 acrylic sleevings are produced by curing a modified acrylic resin on a continuous fiberglass braid, with A397 acrylic best characteriz…
Length:
500 ft
Gauge:
16 AWG
Color:
Natural
EIS Part #:
ACRC16NHV
$ / Foot
The image shown is representative of the product family and may not specifically be the individual item. Varglas 343 acrylic sleevings are produced by curing a modified acrylic resin on a continuous fiberglass braid, with A397 acrylic best characteriz…
Length:
500 ft
Gauge:
14 AWG
Color:
Natural
EIS Part #:
ACRC14NHV
$ / Foot
The image shown is representative of the product family and may not specifically be the individual item. Varglas 343 acrylic sleevings are produced by curing a modified acrylic resin on a continuous fiberglass braid, with A397 acrylic best characteriz…
Length:
500 ft
Gauge:
14 AWG
Color:
Black
EIS Part #:
ACRC14BHV
$ / Foot
The image shown is representative of the product family and may not specifically be the individual item. Varglas 343 acrylic sleevings are produced by curing a modified acrylic resin on a continuous fiberglass braid, with A397 acrylic best characteriz…
Length:
250 ft
Gauge:
12 AWG
Color:
Natural
EIS Part #:
ACRC12NFV
$ / Foot
The image shown is representative of the product family and may not specifically be the individual item. Varglas 343 acrylic sleevings are produced by curing a modified acrylic resin on a continuous fiberglass braid, with A397 acrylic best characteriz…
Length:
250 ft
Gauge:
10 AWG
Color:
Natural
EIS Part #:
ACRC10NFV
$ / Foot
The image shown is representative of the product family and may not specifically be the individual item. Varglas 343 acrylic sleevings are produced by curing a modified acrylic resin on a continuous fiberglass braid, with A397 acrylic best characteriz…
Length:
100 ft
Gauge:
1 Inch
Color:
Natural
EIS Part #:
ACRC1.0NBV
$ / Foot
The image shown is representative of the product family and may not specifically be the individual item. Varglas 343 acrylic sleevings are produced by curing a modified acrylic resin on a continuous fiberglass braid, with A397 acrylic best characteriz…
Length:
250 ft
Gauge:
9 AWG
Color:
Black
EIS Part #:
ACRC09BFV
$ / Foot

Attributes

General Information
Item NameAcrylic Coated Sleeving
Trade NameVarglas A397
SeriesVarglas A397-C-1
Design & Construction
ColorNatural
Braid TypeFiberglass
GradeC-1
Insulation MaterialAcrylic
Insulation TypeClass F
NEMA SpecificationNEMA TF-1
Performance Details
Flame RetardantYes
Tear Strength60 psi
Tensile Strength850 psi
Electrical Properties
Dielectric Strength1500 V
Physical Properties
Gauge8 AWG
Inside Diameter0.133 Inch
Length250 ft
Wall Thickness0.018 Inch
Elongation150%
