Leeson 116772 AC Motor, 1/2 HP, 1200 rpm, 56Z Frame, DP, Rigid Base Mount

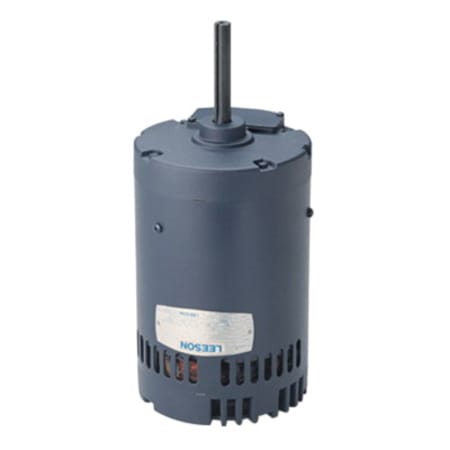

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:LEDPRBACM

EIS #:MOT116773

MFR #:LEDPRBACM

EIS #:MOT116773

Out of Stock

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
Leeson AC Motor, Ball Bearing, Continuous Duty, Dripproof Enclosure, Blue Enamel Painted, 60 Hz, class B Insulation, Rigid Base Mount, 6 Pole, Overload Protector: No, 3-Phase, Reversible Rotation, Horizontal Shaft, Across The Line, 40 deg C. Leeson Dripproof Continuous Duty TD AC Motor.
$932.08 / Piece

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
Leeson AC Motor, Ball Bearing, Continuous Duty, Dripproof Enclosure, Blue Enamel Painted, 60 Hz, class B Insulation, Rigid Base Mount, 6 Pole, Overload Protector: No, 3-Phase, Reversible Rotation, Horizontal Shaft, Across The Line, 40 deg C. Leeson Dripproof Continuous Duty TD AC Motor.

Product Options

Showing 4 out of 4 options
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
2.8 A
HP Rating:
0.5 HP
EIS Part #:
MOT116773
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
5.6 A
HP Rating:
1.5 HP
EIS Part #:
MOT116772
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
4 A
HP Rating:
1 HP
EIS Part #:
MOT115779
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
3.8 A
HP Rating:
1 HP
EIS Part #:
MOT115778
$ / Piece

Attributes

General Information
Item NameAC Motor
Trade NameLeeson
SeriesLEDPRBACM
General Features
StandardsUL Listed, CSA Certified
Net Weight25 lb
TypeTD
Design & Construction
Bearing TypeBall
DutyAirover
Enclosure TypeDripproof
Insulation TypeClass B
KVA CodeL
Mounting TypeRigid Base
RotationReversible
Shaft PositionHorizontal
Performance Details
Full Load Efficiency66.5%
1/2 Load Efficiency56.1%
3/4 Load Efficiency48%
Torque Rating36.13 oz-ft
Speed Rating1200 rpm
Electrical Properties
Frequency Rating60
Full Load Ampere2.8 A
Full Load Power Factor49.3%
1/2 Load Power Factor36%
HP Rating0.5 HP
Phase3-Phase
Service Factor1.15
3/4 Load Power Factor45.2%
Voltage Rating208 V
Physical Properties
Dimensions12.56 Inch L
Number of Poles6
Shaft Length3.75
Weight25 lb
Frame Size56
Shaft Diameter0.625 Inch
Environmental Condition
Thermal ProtectionYes
Temperature Rating40 °C
