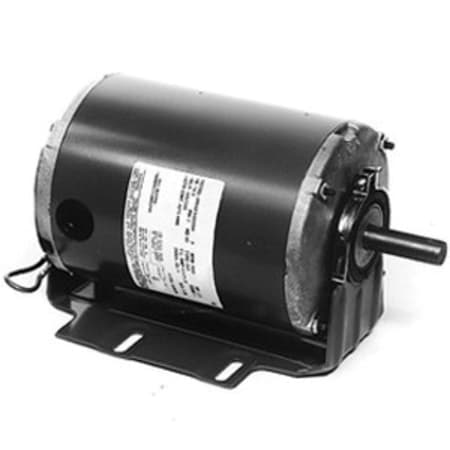

Leeson M900197 AC Motor, 1/2 HP, 1800 rpm, 48YZ Frame, DP, Resilient Base Mount
MFR #:M900197.00
EIS #:MOTM900197
MFR #:M900197.00
EIS #:MOTM900197
Out of Stock
Min Qty:1
|Qty Increment:1
Pack:Box
Leeson 115V 1-Phase Resilient Base Mount Drip proof Enclosure Counter-Clockwise AC Motor
Leeson 115V 1-Phase Resilient Base Mount Drip proof Enclosure Counter-Clockwise AC Motor. Various voltages and mounting types available, Single and three phase fan duty motors, Rigid base, resilient base, pedestal base, belly band mount and extended thru-bolt mount types, Drip-Proof, TEFC, TEAO and DPAO designs, General purpose duty
$570.59 / Piece
Pack: Box
Min Qty:1
|Qty Increment:1
Pack:Box
Leeson 115V 1-Phase Resilient Base Mount Drip proof Enclosure Counter-Clockwise AC Motor
Leeson 115V 1-Phase Resilient Base Mount Drip proof Enclosure Counter-Clockwise AC Motor. Various voltages and mounting types available, Single and three phase fan duty motors, Rigid base, resilient base, pedestal base, belly band mount and extended thru-bolt mount types, Drip-Proof, TEFC, TEAO and DPAO designs, General purpose duty
Product Options
Showing 2 out of 2 options
 | HP Rating: 0.5 HP | Frame Type: 56 | EIS Part #: MOTM900599 | $ / Piece Pack: Box | |
 | HP Rating: 0.5 HP | Frame Type: 48YZ | EIS Part #: MOTM900197 | $ / Piece Pack: Box |
- Attributes
- Applications
- Features
- Documents
Attributes
General Information
Item NameAC Motor
Trade NameLeeson
General Features
StandardsUL Listed, CSA Certified
Net Weight19. lb
TypeSD
Design & Construction
Bearing TypeBall
DutyContinous
Enclosure TypeDripproof
Frame Type48YZ
Insulation TypeClass B
KVA CodeL
Mounting TypeResilient Base
RotationCounter-Clockwise
Shaft PositionHorizontal
Performance Details
Full Load Efficiency66%
Torque Rating24.3 oz-ft
Speed Rating1800 rpm
Electrical Properties
Frequency Rating60
Full Load Ampere7.2 A
Full Load Power Factor71.5%
HP Rating0.5 HP
Phase1-Phase
Service Factor1.25
Voltage Rating115 VAC
Physical Properties
Dimensions10.72 Inch L x 5.62 Inch W x 5.84 Inch H
Frame Size48
Number of Poles4
Shaft Diameter0.5 Inch
Shaft Length1.97 Inch
Weight19 lb
Environmental Condition
Thermal ProtectionYes
Temperature Rating40 °C
Applications
- Ideally suited for a variety of fan applications requiring the motor to either be mounted in or out of the air stream for proper ventilation. Some motors have an epoxy finish
Features
- Various voltages and mounting types available
- Single and three phase fan duty motors
- Rigid base, resilient base, pedestal base, belly band mount and extended thru-bolt mount types
- Drip-Proof, TEFC, TEAO and DPAO designs
- General purpose duty
- Agricultural duty
- Ball bearings
- Torque Rating: 24.3 oz-ft (Full Load)
