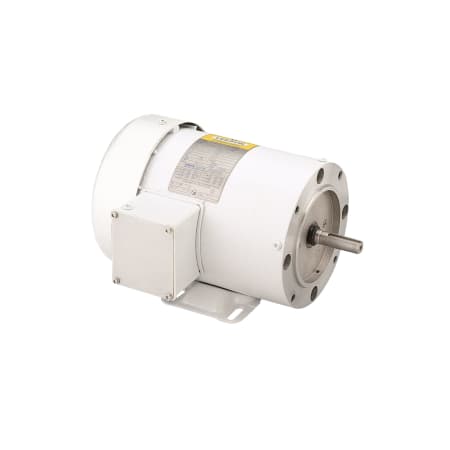

Leeson WhiteDuck AC Motor, 1/3 HP, 3600 rpm, 208 - 230/460V, 190/380V, 56C Frame, TEFC, C-Face With Base Mount

The image shown is representative of the product family and may not specifically be the individual item.

EIS #:MOT116641

EIS #:MOT116641

In Stock

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
Leeson Washguard® 380V 3-Phase Round, C-Face with Base Mount Totally Enclosed Fan-Cooled Enclosure Reversible AC Motor Leeson 380V 3-Phase Round, C-Face with Base Mount Totally Enclosed Fan-Cooled Enclosure Reversible AC Motor. USDA-approved epoxy painted motors, 3-year warranty on encapsulated and Premium efficient models, Wash-down brakemotors and pump motors available, Stainless steel motors, Encapsulated stainless steel motors available
$942.57 / Piece

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
Leeson Washguard® 380V 3-Phase Round, C-Face with Base Mount Totally Enclosed Fan-Cooled Enclosure Reversible AC Motor Leeson 380V 3-Phase Round, C-Face with Base Mount Totally Enclosed Fan-Cooled Enclosure Reversible AC Motor. USDA-approved epoxy painted motors, 3-year warranty on encapsulated and Premium efficient models, Wash-down brakemotors and pump motors available, Stainless steel motors, Encapsulated stainless steel motors available

Attributes

General Information
Item NameAC Motor
Trade NameLeeson
General Features
StandardsUL Listed, CSA Certified
Net Weight22 lb
Design & Construction
Bearing TypeBall
ConstructionStainless Steel
DutyContinous
Enclosure TypeTotally Enclosed Fan-Cooled
Frame Type56C
Insulation TypeClass F
KVA CodeL
Mounting TypeRound, C-Face with Base
RotationReversible
Seal TypeViton®
Shaft PositionHorizontal
Start MethodAcross The Line
Performance Details
Full Load Efficiency66% at 50 Hz, 77% at 60 Hz
1/2 Load Efficiency77.2%
3/4 Load Efficiency86.4%
Torque Rating8.01 oz-ft
Electrical Properties
Armature Voltage90 VDC
Frequency Rating60
Full Load Ampere1.1 A
Full Load Power Factor74% at 60 Hz, 70.7% at 50 Hz
1/2 Load Power Factor49.9%
HP Rating0.333 HP
Phase3-Phase
Service Factor1.15
3/4 Load Power Factor69%
Physical Properties
Dimensions10.08 Inch L x 6.77 Inch H
Frame Size56
Number of Poles2
Shaft Diameter0.625 Inch
Shaft Length1.94 Inch
Weight22 lb
Environmental Condition
Degree of ProtectionIP55
