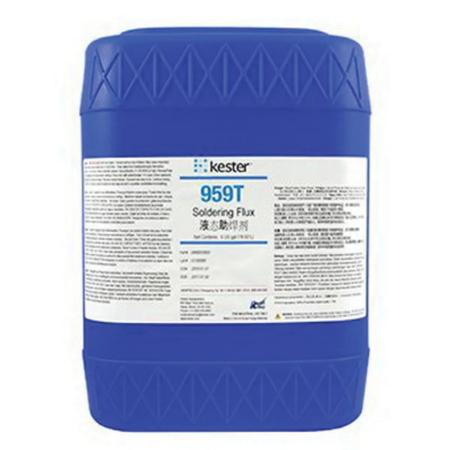

Kester 959T No-Clean Soldering Flux
- MFR #959T
- EIS #PH19-959T
- Series #959T
$96.41 - $98.78
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | |||
|---|---|---|---|
 | 1 gal | $ / US gallon | |
 | 5 gal | $ / US gallon | |
 | 53 gal | $ / US gallon |
The Kester 959T is a no-clean, non-corrosive, liquid flux that is designed for the wave soldering of conventional and surface mount circuit board assemblies. 959T was developed to minimize the formation of micro-solder balls during wave soldering operations. 959T leaves evenly distributed residues for the best cosmetic appearance. - This flux contains a small percentage of rosin (0.5%), which improves solderability, heat stability and surface insulation resistance. 959T offers the best wetting and the shiniest solder joints of any no-clean, solvent-based chemistry.
Features
- Minimize micro solderballs
- Extremely shiny joints
- No streaky, white residues
- Improves soldering performance
- Eliminates the need and expense of cleaning
- Temperature rating of 90 to 105 °C
- Vapor pressure of 43 hPa at 20 °C
General Information
| Item Name | Soldering Flux |
| Series | 959T |
General Features
| Shelf Life | 36 Months |
| Storage Temperature | 10 to 25 °C |
Design & Construction
| Color | Light Yellow |
| Flux Type | No-Clean |
| Form | Liquid |
Performance Details
| Vapor Pressure | 43 hPa |
Chemical Properties
| Chemical Composition | Isopropanol, Aliphatic Carboxylic Acid |
| Flux Formula | 959T |
| Specific Gravity | 0.794 |
| VOC | 763 g/L |
Physical Properties
| Odor/Scent | Alcohol |
Supporting Information
| Flux Designator | ORL0 |
| RoHS Info | 2011/65/EU Directive |
Documents
No Documents Found
