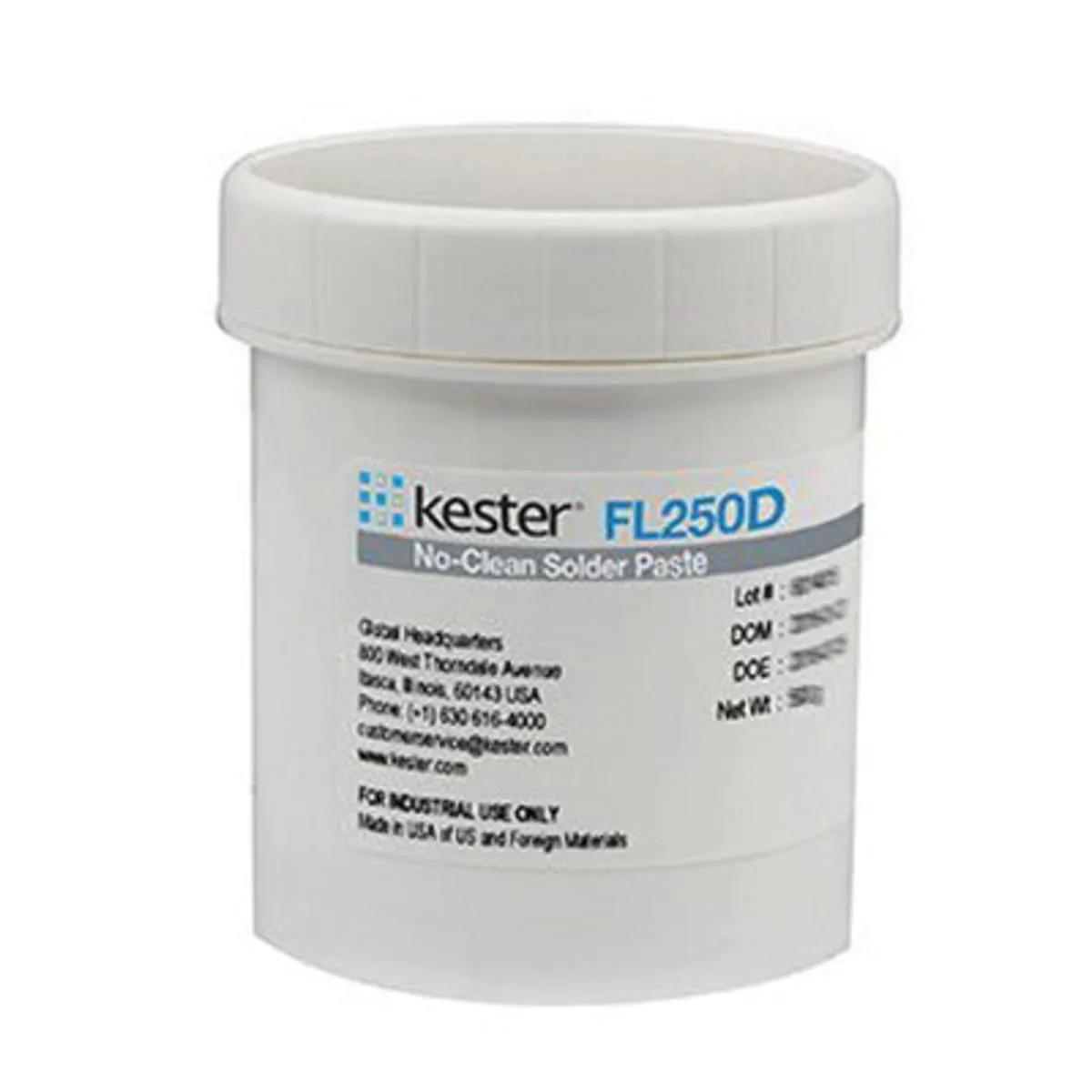

Kester FL250D-6337-90 Type 3 Solder Paste

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:FL250D-6337-90
  • EIS #:PH19-FL250D-6337-90
  • Series #:FL250D-6337-90
  • MFR #:FL250D-6337-90
  • EIS #:PH19-FL250D-6337-90
  • Series #:FL250D-6337-90
0
0
The Kester FL250D is a no-clean, air or nitrogen reflowable solder paste specifically designed for automotive requirements. FL250D is compatible with post-soldering process chemicals, including conformal coatings and potting compounds. - FL250D is capable of stencil printing downtimes of up to 90 min with an effective first print at 20 mils. FL250D also has the capability of printing up to 8 in/sec (200 mm/sec) with squeegees or within an enclosed head.
$155.69
 - $161.21
Select from the options below
0
0
The Kester FL250D is a no-clean, air or nitrogen reflowable solder paste specifically designed for automotive requirements. FL250D is compatible with post-soldering process chemicals, including conformal coatings and potting compounds. - FL250D is capable of stencil printing downtimes of up to 90 min with an effective first print at 20 mils. FL250D also has the capability of printing up to 8 in/sec (200 mm/sec) with squeegees or within an enclosed head.

Product Options

Showing 2 out of 2 options
The image shown is representative of the product family and may not specifically be the individual item.
Container Size:
600 g
Container Type:
Cartridge
EIS Part #:
SN63FL250D-600G
$ / Cartridge
The image shown is representative of the product family and may not specifically be the individual item.
Container Size:
500 g
Container Type:
Jar
EIS Part #:
SN63FL250D-500G
$ / Piece

Attributes

General Information

Item NameSolder Paste

SeriesFL250D-6337-90

General Features

Shelf Life4 Months
Storage Temperature0 to 10 °C

Design & Construction

ColorSilver Gray
Flux TypeNo-Clean
FormPaste
Particle TypeType 3

Chemical Properties

Flux FormulaFL250D
Mesh Size-325/+500

Physical Properties

AlloySn63 Pb37
Odor/ScentMild

Environmental Condition

Melting Range100 °C

Supporting Information

Applicable MaterialsStainless Steel, Molybdenum, Nickel Plated or Brass
Flux DesignatorROL0
RoHS Info2011/65/EU Directive
