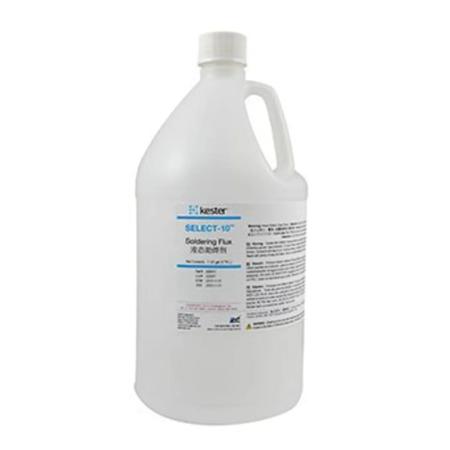

Kester Select-10 Selective Solder Flux
- MFR #Select-10
- EIS #PH19-SELECT-10
- Series #Select-10
$243.12 - $271.77
Refine your product below or compare all choices in the
Cantidad mínima1QTY Increment1
more info
Paquete--| Stock Status | |||
|---|---|---|---|
 | 1 gal | $ / US gallon | |
 | 5 gal | $ / US gallon more info |
Kester SELECT-10™ is a zero-halogen no-clean liquid flux designed specifically for the needs of the selective soldering process. Sustained activity within the flux allows for good barrel fill in challenging applications, such as reflowed copper OSP boards or with difficult to solder components. - Specific to selective soldering, SELECT-10™ does not spread beyond the spray pattern and will not clog the fluxer head. SELECT-10™ residues are non-tacky for improved cosmetics. SELECT-10™ is classified as ROL0 flux under IPC J-STD-004B. SELECT-10™ is also available as a flux-pen.
Features
- Zero-halogen (none intentionally added)
- Provides good solderability under air atmosphere
- Controlled flux application, flux does not spread beyond the spray pattern
- Non-corrosive, non-conductive and non-tacky residues
- Ability to provide desired hole-fill with preheat temperatures over 140°C
- No Clogging
- Compliant to GR-78-CORE (Telcordia/Bellcore)
- Classified as ROL0 per J-STD-004B
- Pass SIR in raw and preheating condition
- Also available as a flux-pen
General Information
| Item Name | Selective Solder Flux |
| Series | Select-10 |
