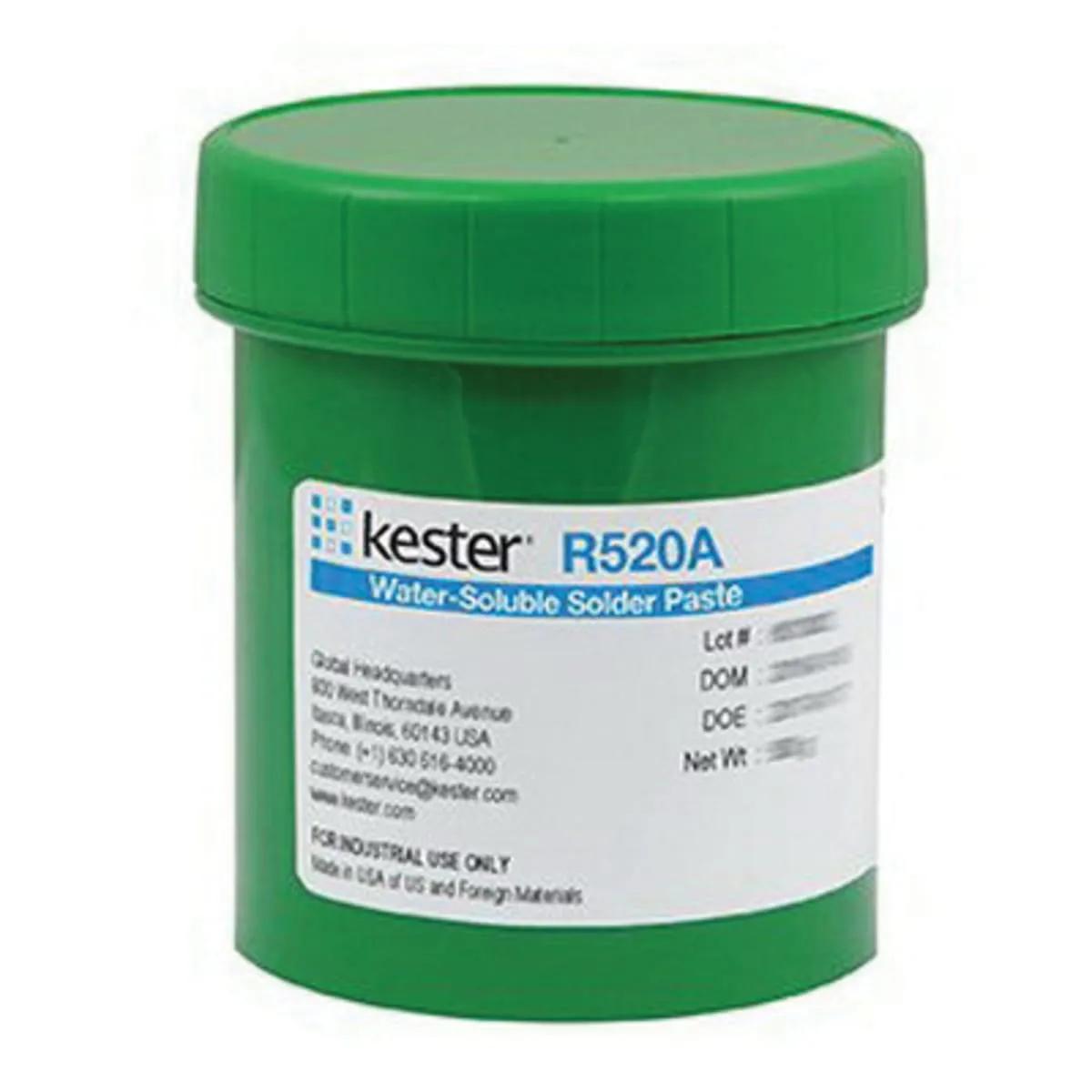

Kester R520A-SAC305-89.5 Type 3 Lead-Free Solder Paste
- MFR #R520A-SAC305-89.5
- EIS #PH19-R520A-SAC305-89.5
- Series #R520A-SAC305-89.5
$316.09 - $379.31
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | ||||
|---|---|---|---|---|
 | 600 g | Cartridge | $ / Piece |
The Kester R520A is a lead-free, organic acid, water soluble solder paste formula specifically designed for use with the higher temperature Pb-Free alternative soldering alloys such as Sn96.5Ag3.0Cu0.5 (SAC Alloys). The solder paste exhibits long stencil life and tack time, while still delivering exceptional solderability to a wide variety of metallic substrates. R520A is an extremely stable water soluble formula. - R520A was formulated to release consistently from the stencil for those critical fine pitch applications (0.5 mm/20 mils) with anti-slump characteristics and preferred solder deposit definition. The activator package in this formula is extremely aggressive, providing superior wetting to OSP coated and Immersion Gold over Electroless Nickel (ENIG) boards.
Features
- Stable tack life to long stencil life
- Consistent printing over a range of temperatures and humidities
- Excellent wetting onto Ag/Pd leaded components
- Lead-free and water soluble
- Print speed up to 150 mm/sec (6 Inch/sec)
- Reduces scrap due to less paste dry out
- Residues easily removed with hot DI water
- Metals percentage of 89.5%
- Melting range of SAC305 alloy (Sn96.5Ag3.0Cu0.5) is 217-220 °C (422-428 °F)
Applications
- For Stencil Printing Applications
General Information
| Item Name | Lead-Free Solder Paste |
| Series | R520A-SAC305-89.5 |
General Features
| Type | Lead-Free |
| Shelf Life | 4 Months |
| Storage Temperature | 0 to 10 °C |
Design & Construction
| Color | Silver Gray |
| Flux Type | Organic Activated or Water Soluble |
| Form | Paste |
| Particle Type | Type 3 |
Chemical Properties
| Flux Formula | R520A |
| Lead Free | Yes |
| Mesh Size | -325/+500 |
Physical Properties
| Alloy | Sn96.5 Ag3.0 Cu0.5 (SAC305) |
Environmental Condition
| Melting Range | 220 °C |
Supporting Information
| Applicable Materials | Stainless Steel, Molybdenum, Nickel Plated or Brass |
| Flux Designator | ORH0 |
| RoHS Info | 2011/65/EU Directive |
