SCS Adjustable Clasp Wrist Strap with Cord, MFR ID 22140

  • MFR #22140
  • EIS #PH13-22140
  • Series #22140
$46.27 - $62.16
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--

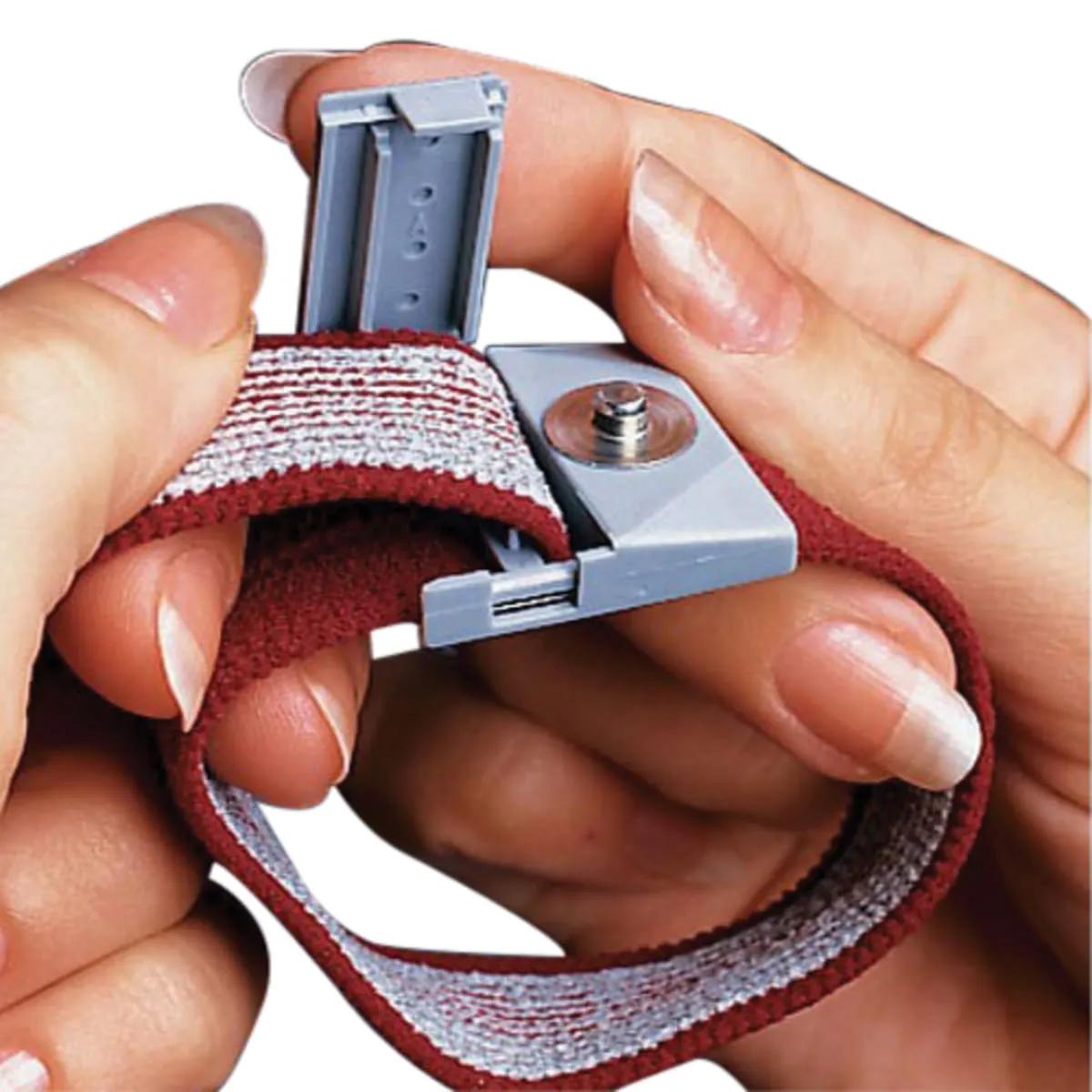

The adjustable wrist strap with cord provides a cost-effective method of grounding personnel and are the front line of defense in all static control processes. Provide a comfortable, custom fit with these adjustable wrist straps. One size adjusts to any size wrist to provide reliable, 360 deg protection. These wrist straps feature a band made of a silver plated, monofilament, continuous thread woven together with elastic nylon to assure full conductivity, comfort and reliability, while providing rapid and continuous drain of static charge. - Adjustability also simplifies ordering procedures and inventory control by eliminating the need to order and stock several band sizes. A 1 megohm resistor is built into the ground cord. All wrist strap set with cord include an alligator clip, which fits over the installed banana jack on the ground cord, to provide an alternative ground attachment method.

General Information

Item NameWrist Strap with Cord

Series22140

General Features

StandardsUL Listed, ANSI/ESD S1.1

Design & Construction

Closure TypeClasp
Cord Length5 ft
Cord TypeCoiled
MaterialElastic Nylon, Stainless Steel Back Plate

Electrical Properties

Resistance< 500 ohm Band, 1 Mohm Cord

Physical Properties

Number of Conductors1
Size GroupUniversal
