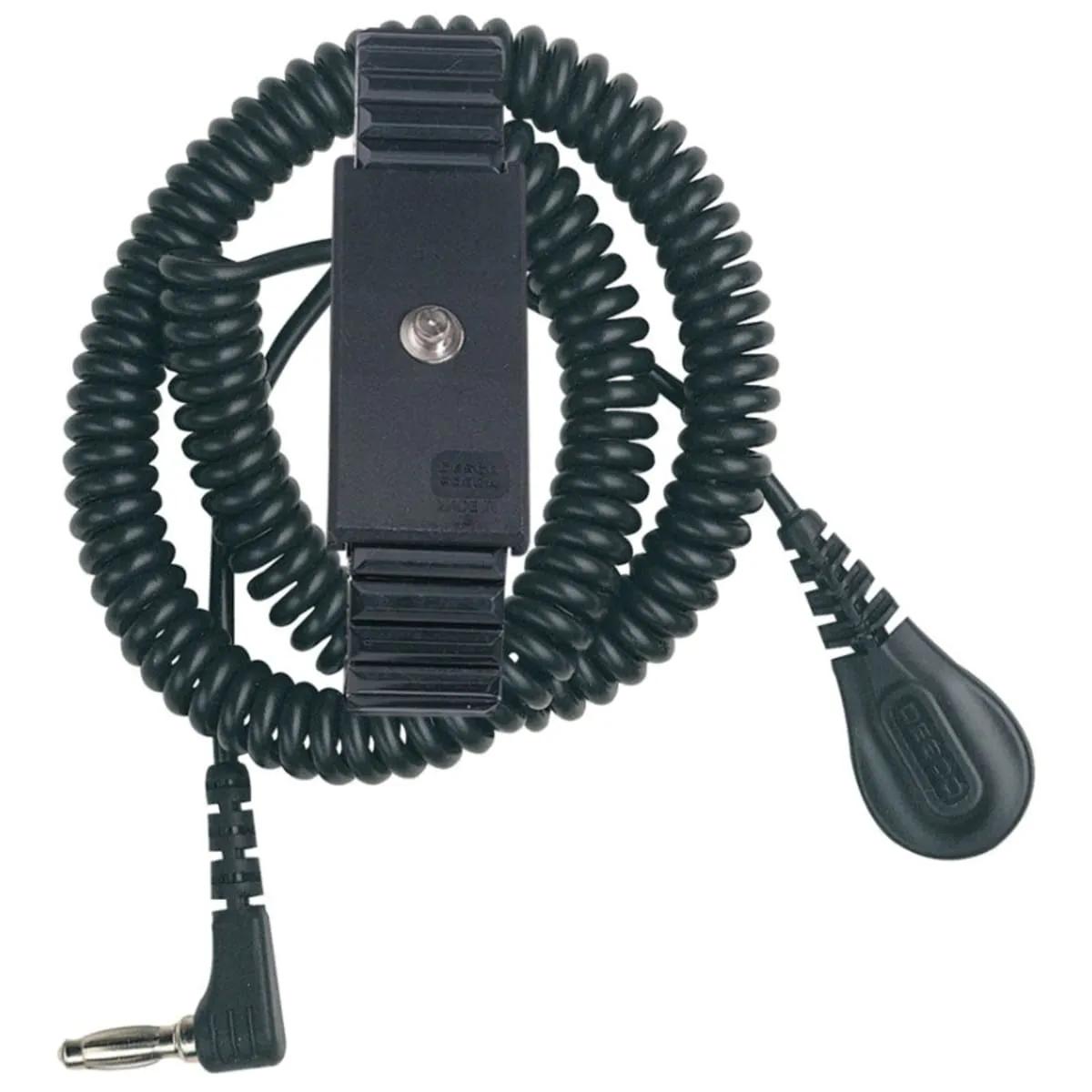

Desco 91070 Adjustable Premium Wrist Strap Kit, Universal, 4 mm Stud Snap, 6' Coiled Cord, Black, Each
- MFR #91070
- EIS #91070-DES
$31.95 / each
Pack: Each
Available to Order
Min QTY1QTY Increment1
more info
PackEach
300 series stainless steel back plate forms channel to hold up to 10 links of band allowing size adjustment. ABS cap with slotted opening to allow size adjustment. 4 mm snap stud machined from 300 series stainless steel. Fits to 4 mm spring loaded medical type socket. Inside links constructed of 300 series stainless steel. Width of links is 0.63 Inch. 0.002 Inch polyphenylsulfone sheet is laminated to each link. Provides >5000V RMS insulation per ASTM D149. Scratch resistant. Size is adjusted by sliding 1 - 10 links of the band into the backplate "C" channel. 300 series stainless steel clip for electrical contact between snap stud and backplate. - The Desco reusable wrist strap, includes 6 ft coil cord, right angle banana jack.
General Information
| Item Name | Wrist Strap Kit |
| Trade Name | Desco |
General Features
| Standards | ANSI EOS/ESD S1 1987, ASTM D 149, UL Listed |
| Type | Adjustable, Premium |
Design & Construction
| Color | Black |
| Cord Length | 6 ft |
| Cord Type | Coiled |
| Material | Stainless Steel |
Electrical Properties
| Resistance | 1 Mohm |
Physical Properties
| Number of Conductors | 1 |
| Size Group | Universal |
| Snap Size | 4 mm Stud |
| Strap Circumference | 5.75 - 13 Inch |
