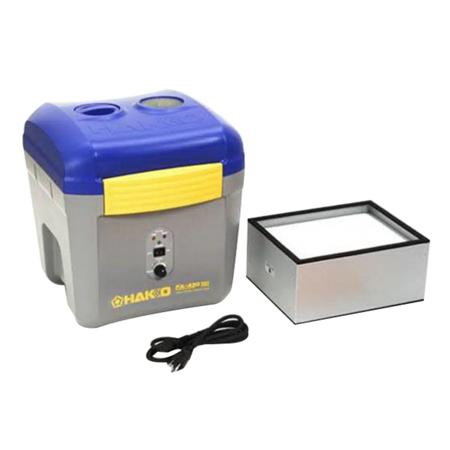

Hakko FA430-16 Volume Fume Extraction System, 246 cu-m/hr Single Duct, 284 cu-m/hr Two Duct, 120W, 120VAC

Hakko-Volume Fume Extraction-FA430-16-HAK-Images
  • MFR #:FA430-16
  • EIS #:FA430-16-HAK
  • MFR #:FA430-16
  • EIS #:FA430-16-HAK
Available to Order

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
The Hakko FA430-16 is a volume fume extractor unit with pre-HEPA and maximum 2 ports/2 stations, no arms, 120W. Inside the unit, two filters, comprising three stages of filtering, remove the contaminants from the air. The purified air is then returned to the area where the Hakko FA430-016 Volume Fume Extraction Unit is located. - The pre-filter removes coarse particles, such as dust, thus extending the life of the main filter. The main filter provides the greatest amount of surface area within the volume of the filter case. The standard filters contain an activated carbon element built into the filter. This filter is designed to last the life of the main filter.
$1,268.83 / Piece

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
The Hakko FA430-16 is a volume fume extractor unit with pre-HEPA and maximum 2 ports/2 stations, no arms, 120W. Inside the unit, two filters, comprising three stages of filtering, remove the contaminants from the air. The purified air is then returned to the area where the Hakko FA430-016 Volume Fume Extraction Unit is located. - The pre-filter removes coarse particles, such as dust, thus extending the life of the main filter. The main filter provides the greatest amount of surface area within the volume of the filter case. The standard filters contain an activated carbon element built into the filter. This filter is designed to last the life of the main filter.

Attributes

General Information

Item NameVolume Fume Extraction System

Design & Construction

Gas Filter SpecificationActive Carbon Foam

Performance Details

Maximum Extraction Capacity246 cu-M/hr
Noise Level44 dB
Vacuum Pressure1500 Pa

Electrical Properties

Power Consumption120 w
Voltage Rating120 VAC

Physical Properties

Dimensions13 Inch L x 13.5 Inch W x 14.4 Inch H
Duct Size55 mm
Weight7.5 kg

Supporting Information

HEPA Filter Specification99.97% at 0.3 Micron
IncludesPower Cord, Main Filter and One Pre-filter
